Harley 3334-32 Knucklehead UL Pan Cotton Weave Spark & Throttle Cables 1936-48
- Product Code: 355291954752
- Availability: Out Of Stock
-
$114.95
You are purchasing two new European made restoration-correct reproduction cloth covered spark and throttle control cables or control coils specifically for 1932 to 1948 Knucklehead, Panhead UL, WL, WLA, VL, and Servicar twins as it has the .75 OD plug, Casing length is about 55" from end to end, overall length of the inner wire is roughly 60" long. Casing and cable are typically trimmed for final fit on your bike which is best done with a set of side cutters and a sharp blade. These are hand-made in small batches for perfect accuracy and are a Cimarron Cycle Works exclusive.
Note that there are no end ferrules, those were used only on brake cables, not throttle and spark coils. We do have these for 1954-1974 models as well and are trying to see if we can come up with the same quality on 1949-1953 models.

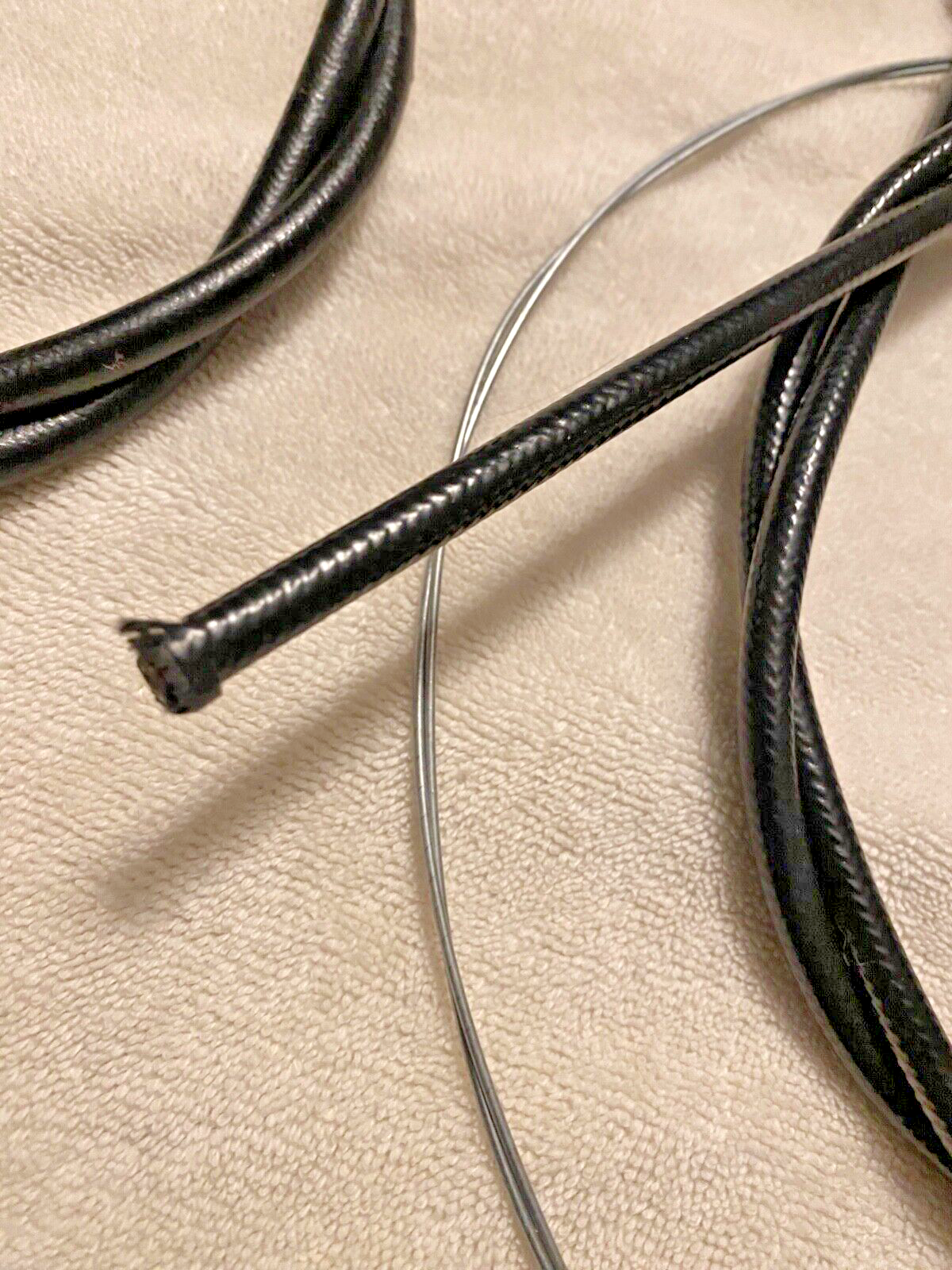

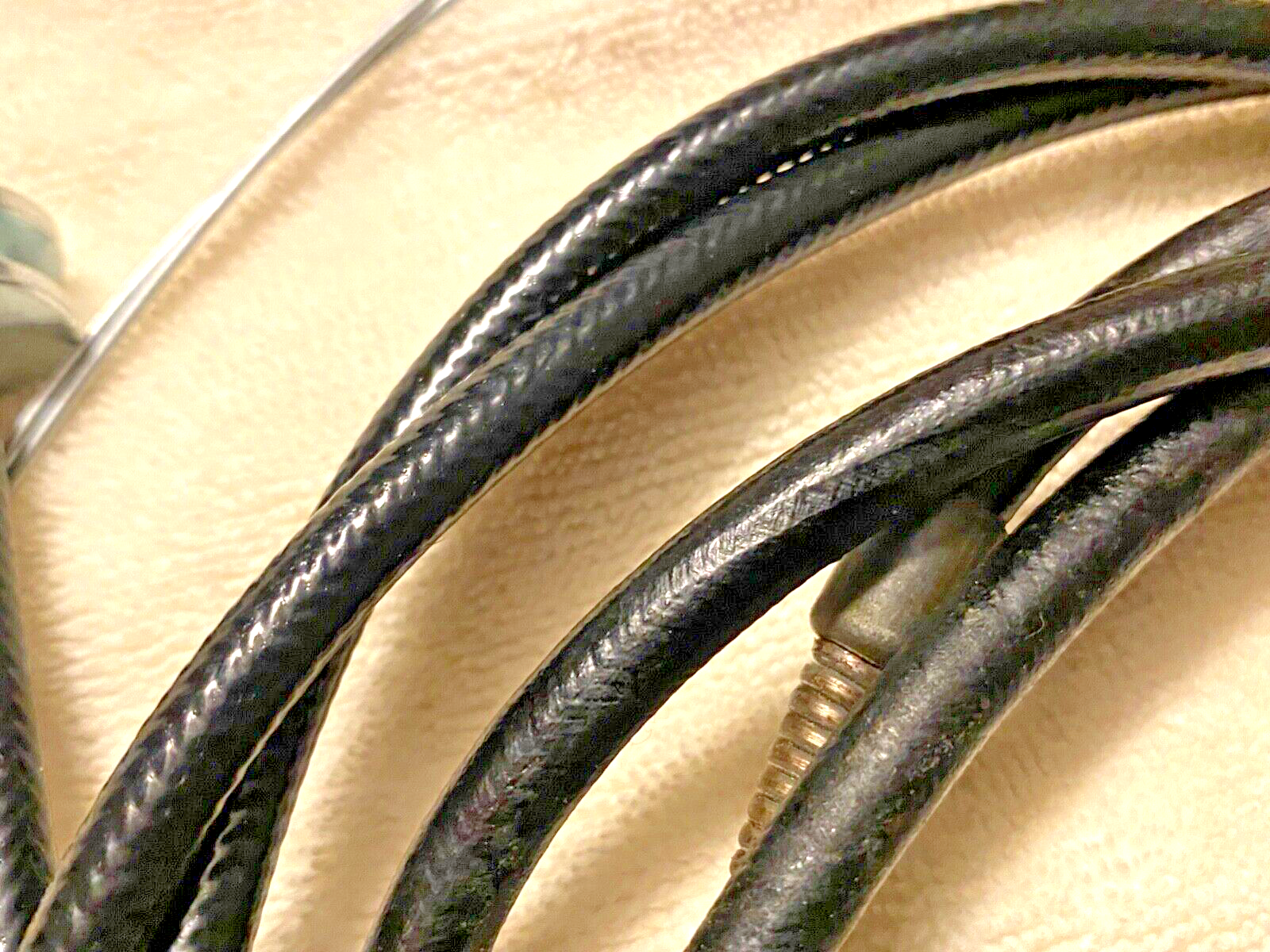

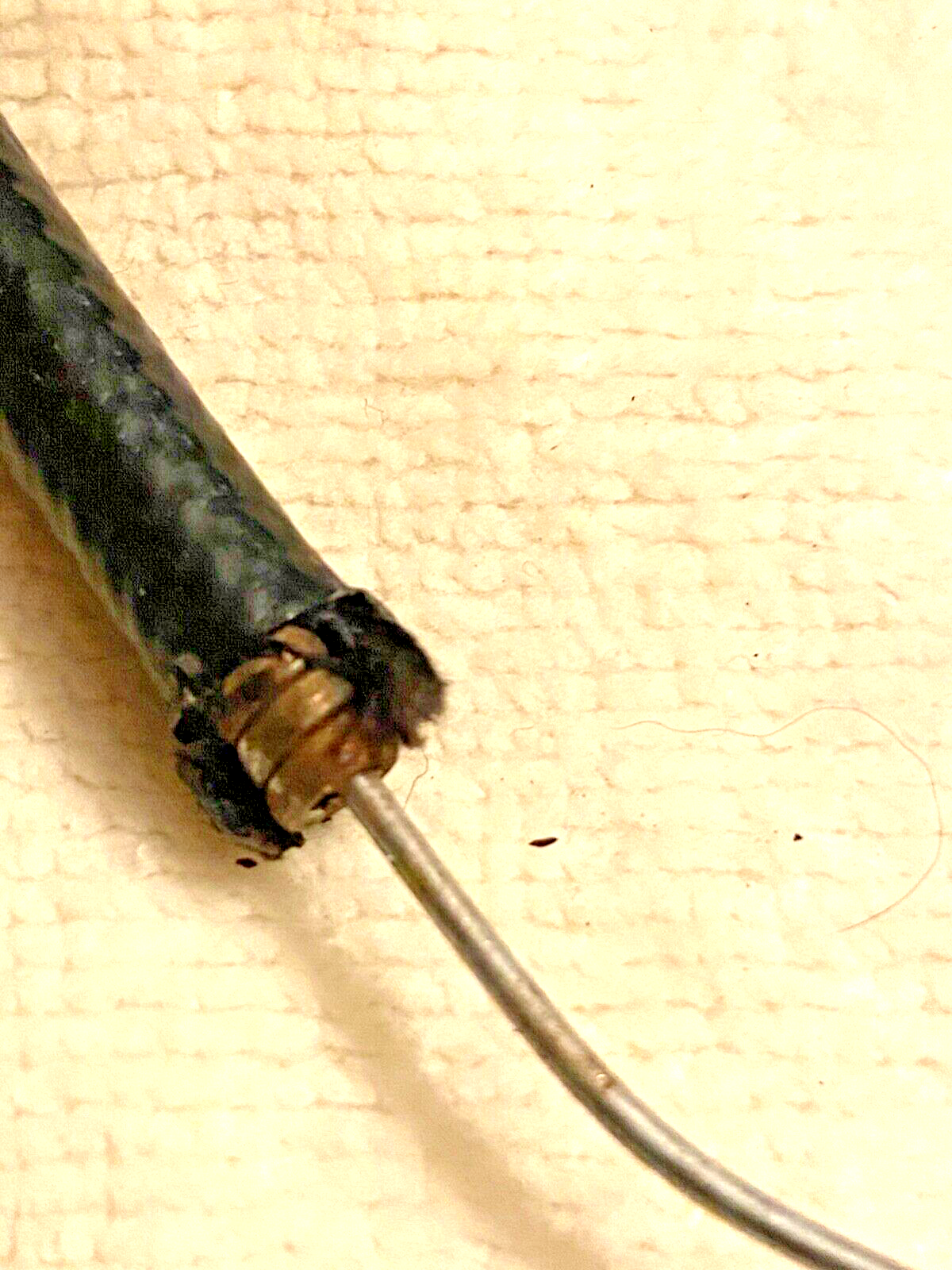

Please look closely at the photo showing the casing on this one and the casing on an NOS brake coil we have in our archives in photo 2 and 3. You will be hard pressed to find a more accurate outer casing. When we got these, they were so smooth we thought they were vinyl and our vendor asked that we trim them back to see the cloth.

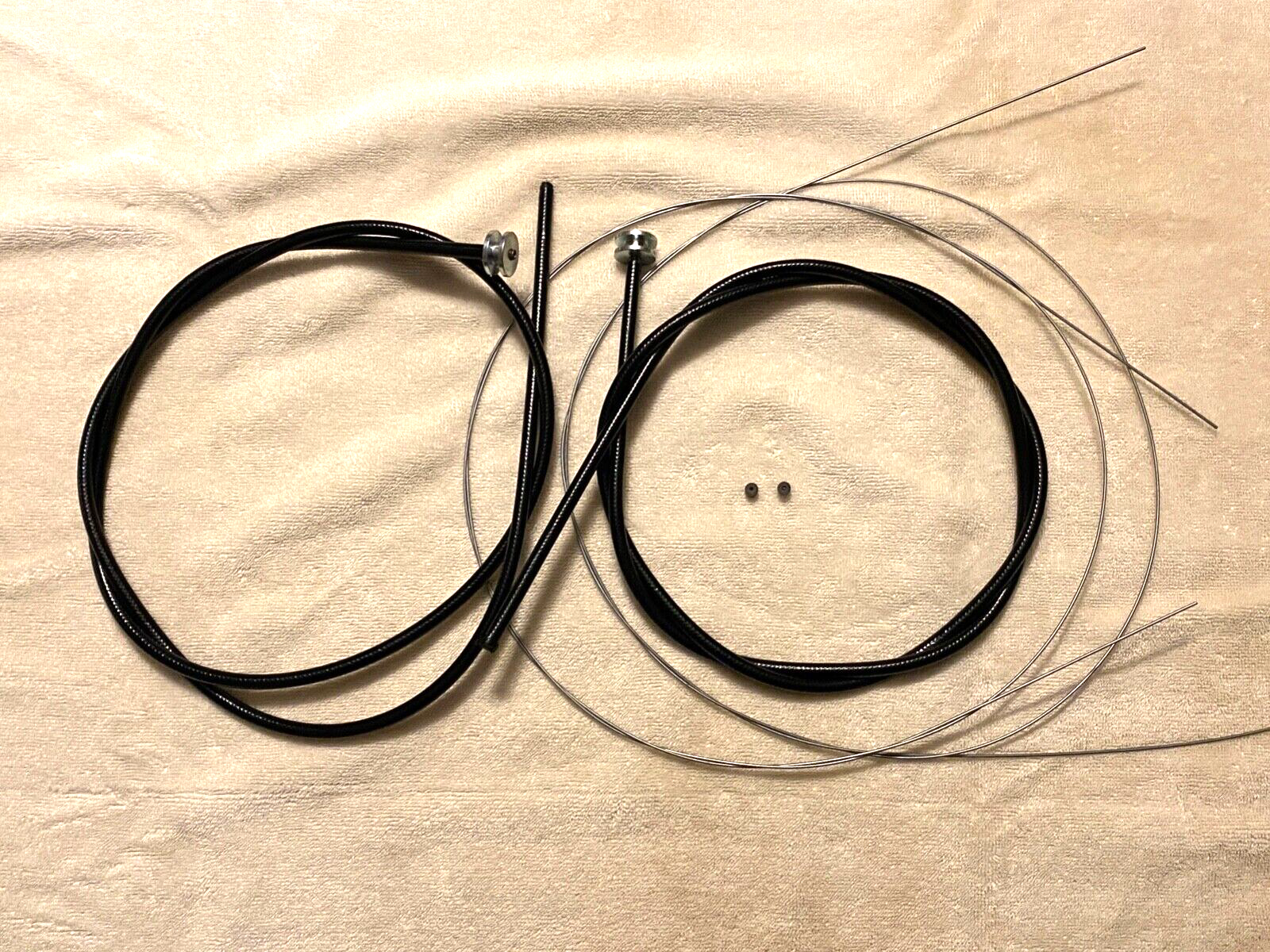

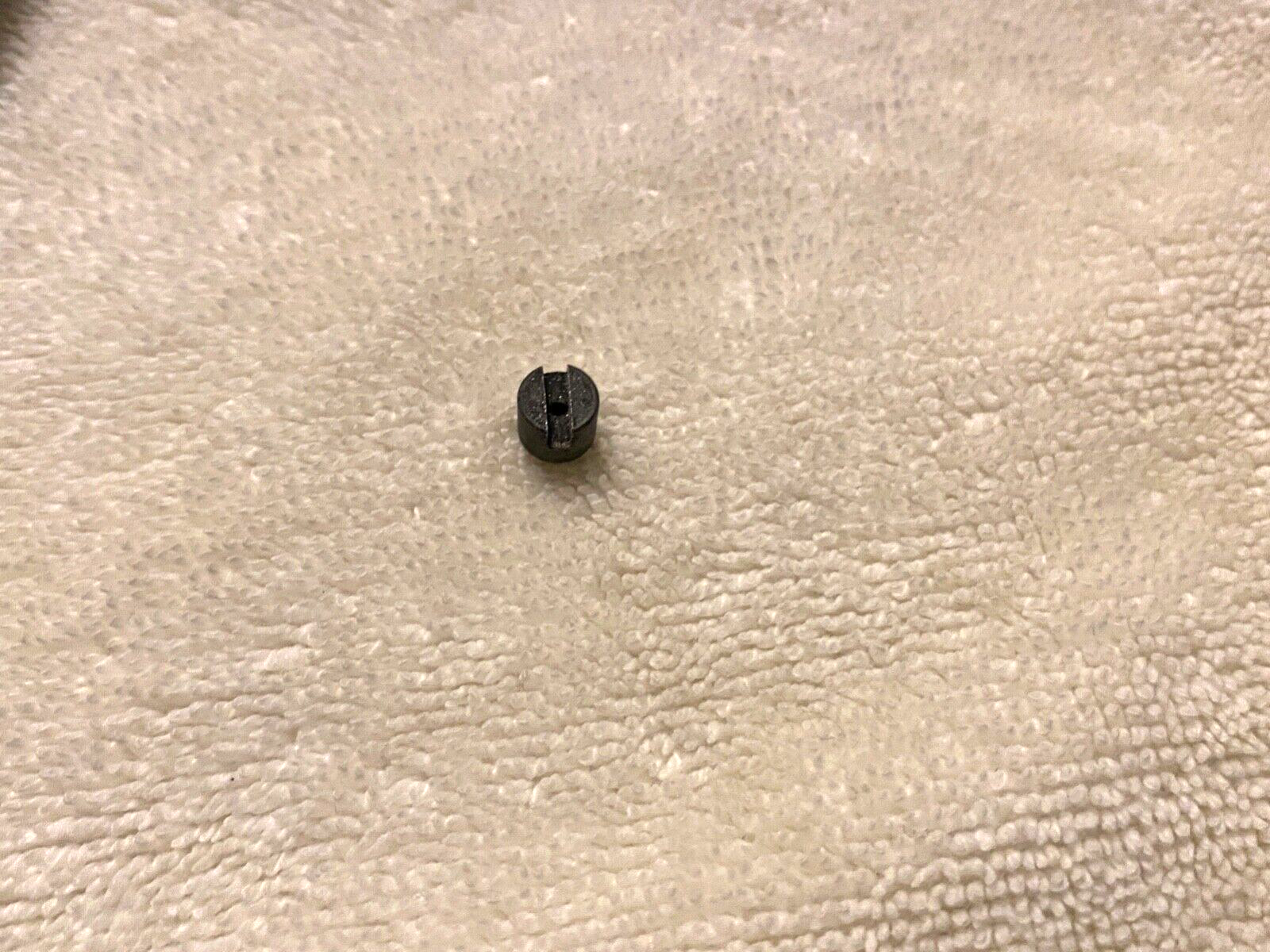

You will get two outer cables or "coils", two piano wire type push/pull wires, as well as the two end slugs you will need to solder or otherwise secure.
Possibly used on 1932-1934 single models, please check your own reference material to be sure.
Note: This is for the stock "push-pull" type throttle and spark advance. We do sell these individually as well.
We also stock cloth covered brake and clutch cables for Panheads and cloth covered throttle and timer control coils for all years into the 1960's. We also manufacture the most highly detailed wiring harness kits for 1926-1969 Harley-Davidsons including Hummers, Knuckleheads, military bikes, VL, JD, etc. We have a huge stock of very hard to find hardware for models from these years as well in addition to wire clips and clamps, transmission, clutch, and engine parts, Schebler and Linkert parts, very well detailed tail lamps and headlamps for your authentic restoration.
Used on the following:
- 1932-1936 V, VL, VLD, VLH 74" & 80" sidevalve or flathead twin
- 1932-1936 R, RL 45" Solo
- 1932-1948 G Servicar
- 1936-1947 EL, FL 61" & 74" OHV twin Knucklehead
- 1948 EL, FL 61" & 74" OHV twin Panhead (and 1949 Panhead with spring fork for side car or package truck
- 1937-1948 U, UL, ULH, UH, UA 74" & 80" sidevalve or flathead big twin
- 1937-1948 W, WL, WLD, WR, WLDR, WLA, WLC 45" solo
