Harley 1968-69 Complete Shovelhead Turn Signal Wiring Overhaul Wire Harness

Harley 196869 Complete Shovelhead Turn Signal Wiring Overhaul Wire Harness
  • Product Code: 356954884628
  • Availability: In Stock

  • $49.95


0 reviews / Write a review

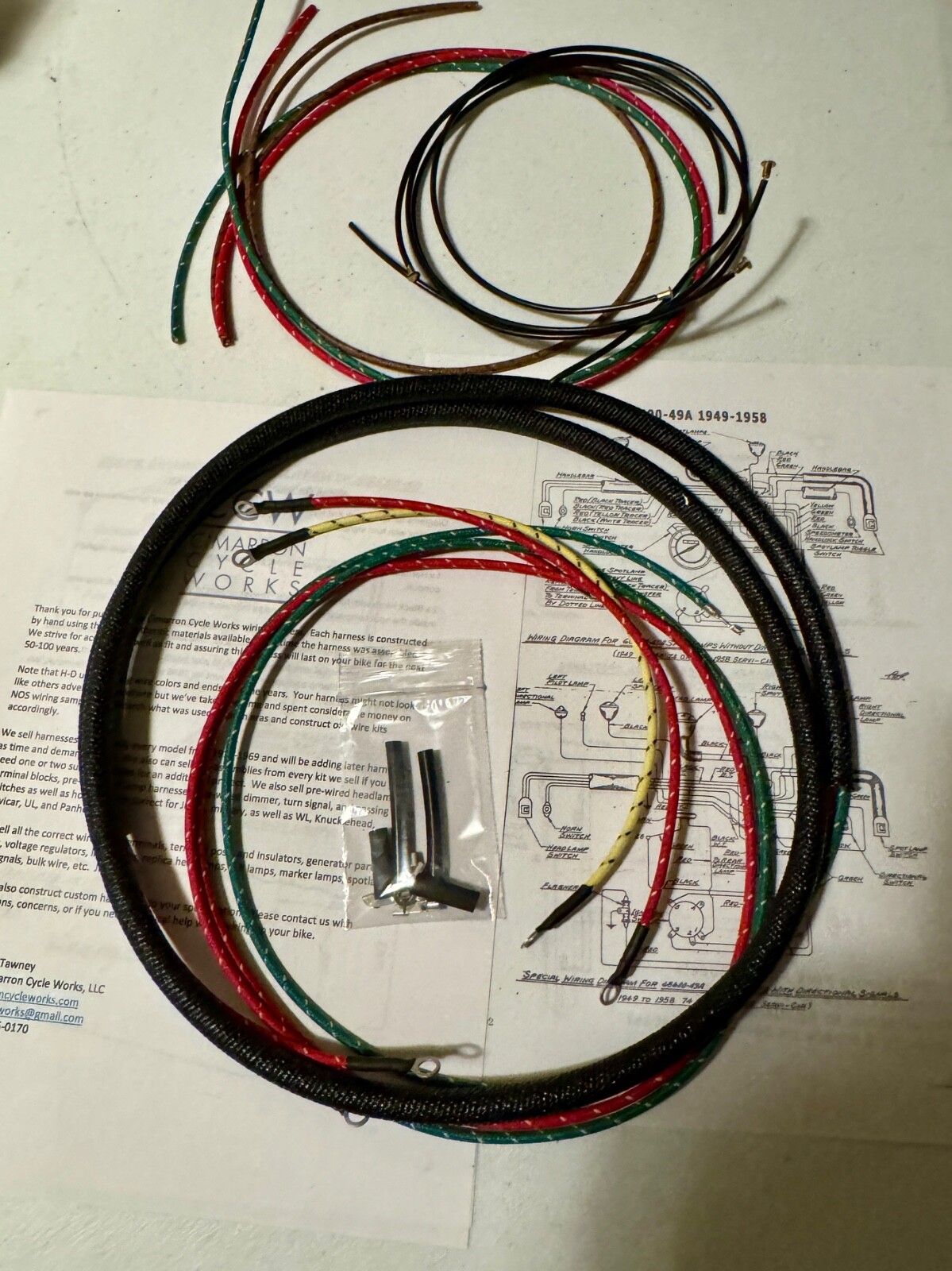

You are purchasing one new USA Made turn signal wiring harness kit for 1968-1969 Harley-Davidson Shovelhead models.  This is our deluxe kit which includes the following:

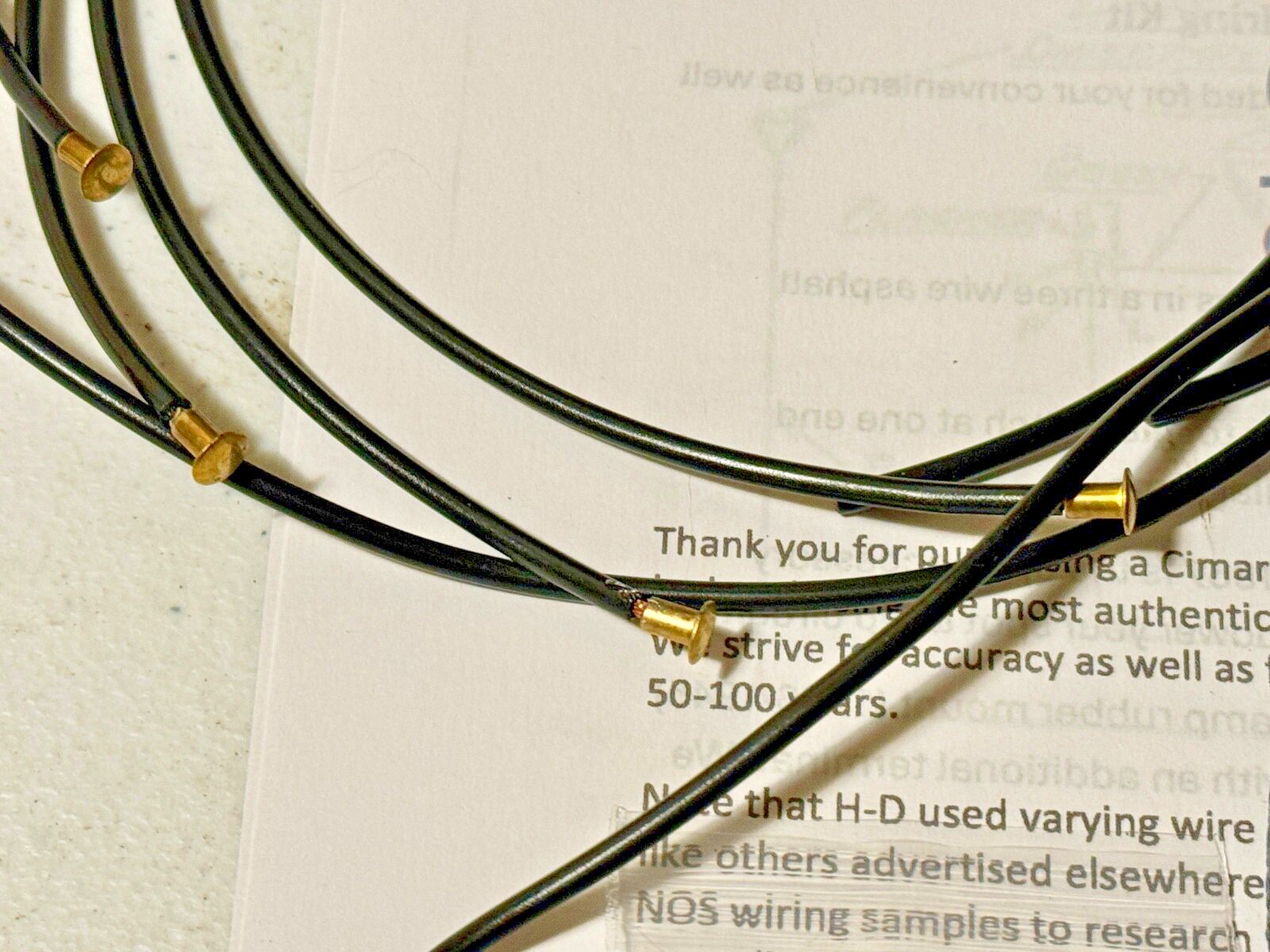

  • 4 x Lamp black vinyl insulated wires with soldered lamp contacts.  16" for rear, 20" for front.

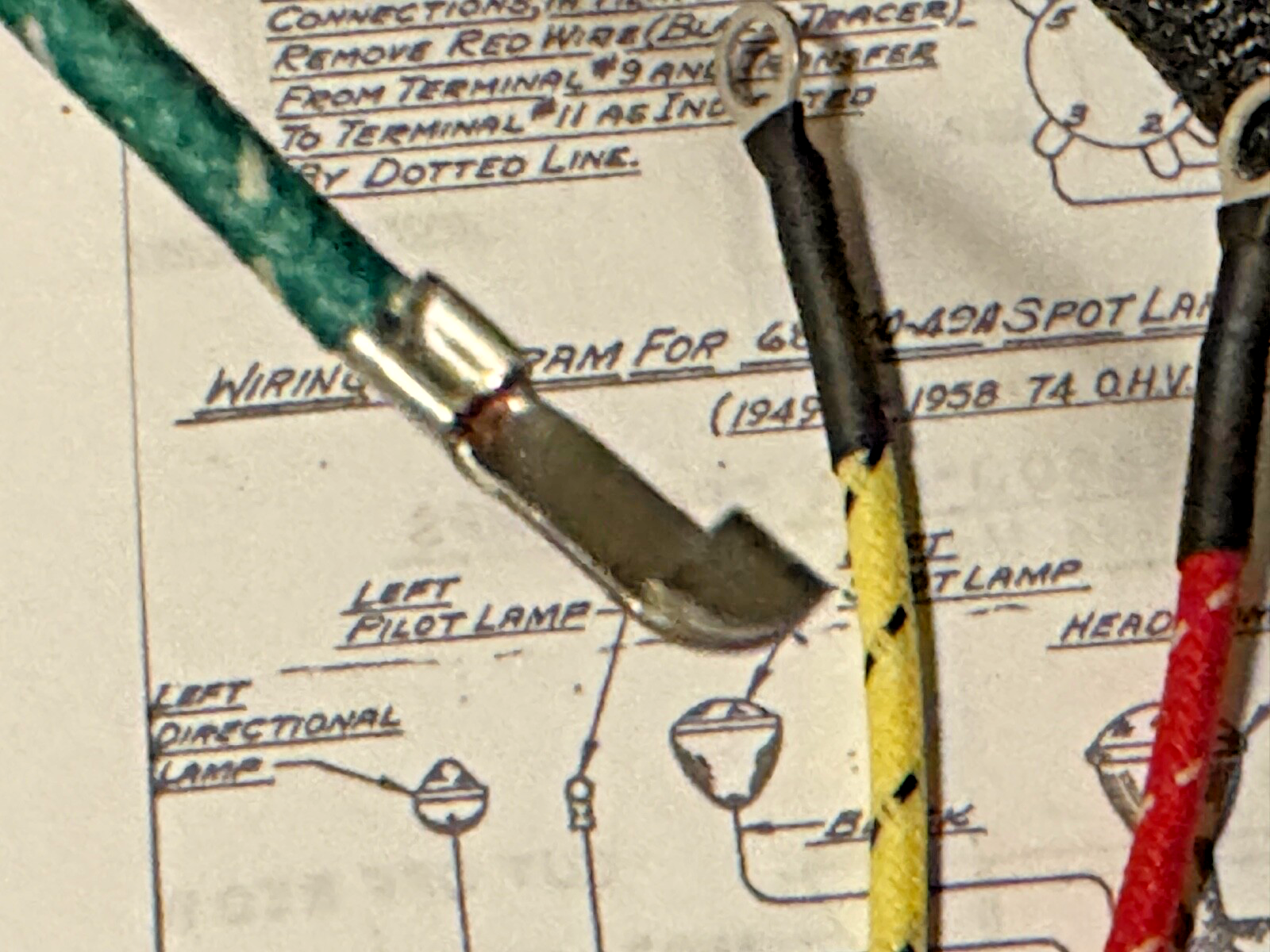

  • 2 x Crimp type knife connectors and vinyl shrink tubing for rear lamps as original

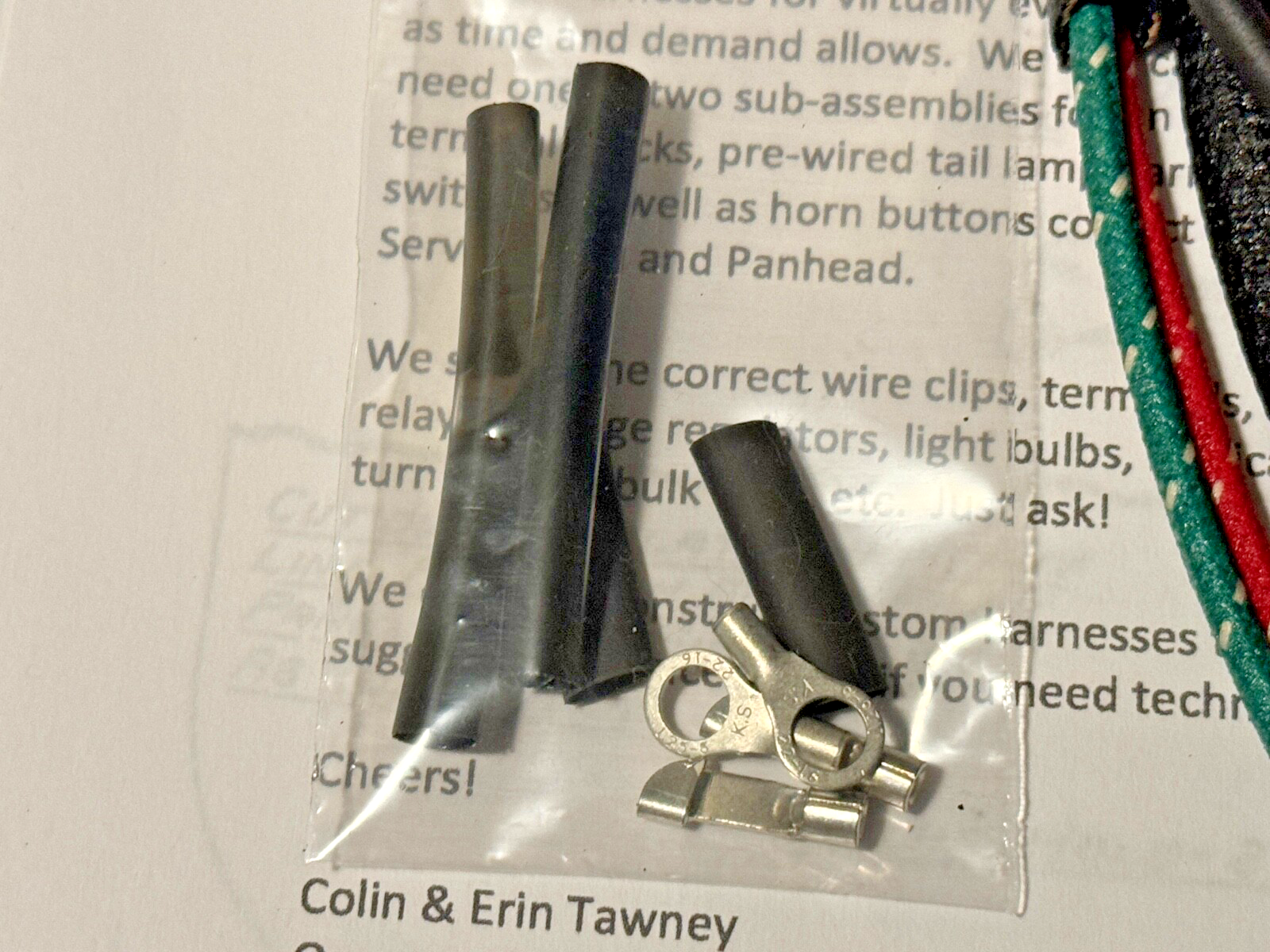

  • 2 x Ring terminals & heat shrink tubing for front marker lamps to connect to the posts on the fork terminal plate
  • 1 x Three wire switch harness with #10 terminals crimped in place for internal routing in your right bar
  • 1 xTwo wire harness, front terminal plate to rear connections with asphalt loom and terminals crimped in place

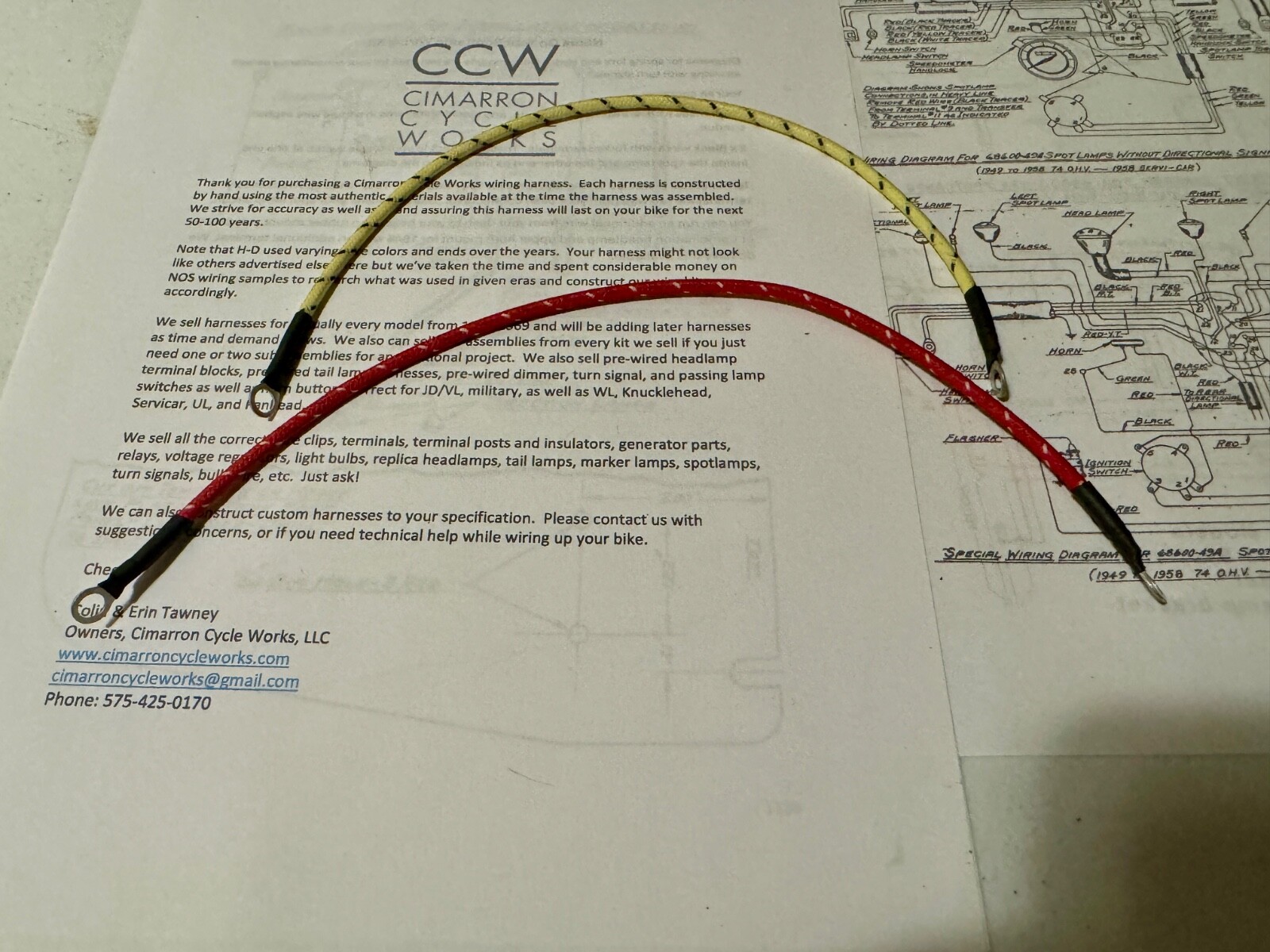

  • 1 each: 11" yellow/black and 11" red/white flasher to terminal plate wires with #10 ring terminals for some flasher
Wire geometry assumes you are using an internally wired switch through your bars and are running your terminal plate to rear signal lamp cable to your tag frame area using a 1963 and up rear signal bracket and running the harness through your rear fender channel.  Signal lamp wires included have lamp contacts already soldered in place.  If you need a socket spring or insulator for a lamp, email and let us know.

If you are using an externally-wired switch, order our 1963-1967 switch wire kit.

They changed to vinyl lamp wires with the new Guide pancake type signals introduced in 1963 and started using knife connectors for the rear junctions.  We also make a kit for 1949-1962 and 1963-1967.  There's more than enough wire to adapt to a Sportster.

Wires and looms are pre-cut to correct lengths unlike other kits, we do allow a bit of extra wire on the lamp .



Each harness is made one at a time by hand in our shop in beautiful Cimarron, New Mexico and comes with detailed installation instructions.  We do also sell clip kits for bar wires and tail lamp wires.  We do have a tail lamp kit on another listing if you are re-doing all your rear fender wiring.



We also sell complete harness kits for Knucklehead, K & Sportster, Hummer & other two stroke lightweights, WL, UL, Panhead, and early Shovelhead in our store for 1936-1969 with all budgets in mind.  We can also manufacture a harness to your own exacting specifications.



If you can't find what you need here for your vintage 1915-1984 model HD model or cimarroncycleworks, just email and ask.We also sell a complete kit for 1936-1937, 1938-1946, 1948, 1949-1953, 1954-1957, 1958-1959 Duo-Glide, K & Sportster models, Hummer Knucklehead, WL, Servicar, VL, JD, RL, single & DL.  We also stock kits for 1939 to 1945 models, 1948-1954, and 1955-1969.



We also sell dimmer and horn switches, as well as complete wiring clip kits to finish out your installation.  We will be adding kits complete with the clips in the near future.  If you don't see them, just ask. Manufactured at and ships from Cimarron Cycle Works, LLC in beautiful Cimarron New Mexico, USA!



Used on the following:
  • 1949-1957 EL, FL 61" & 74" OHV Panhead Hydra-Glide
  • 1948 U, UL, 74" big twin flathead
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.  A note on shipping:If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
