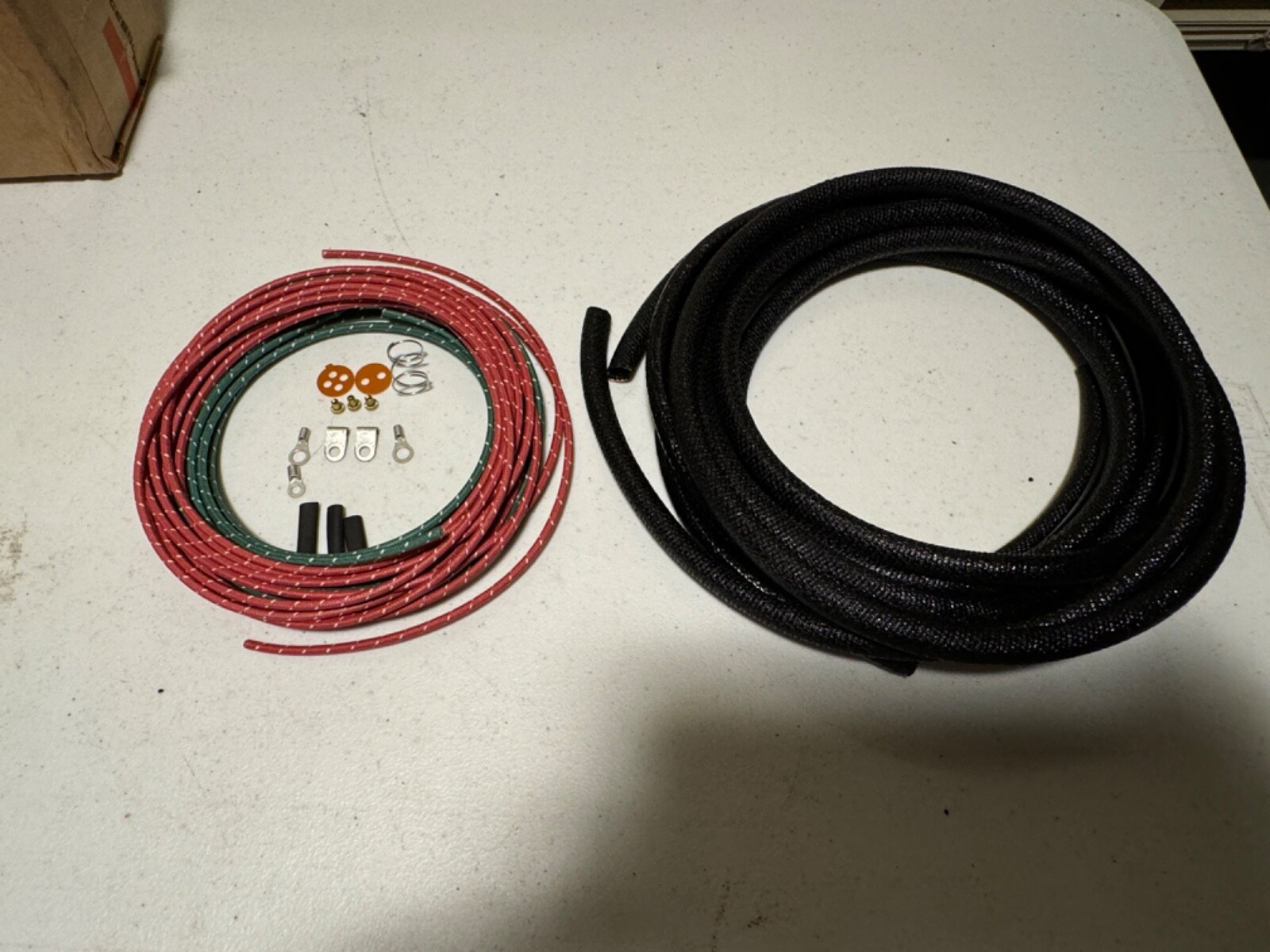

You are purchasing one new USA Made wiring harness kit for 1946-1947 Harley-Davidson sidecars.  This is our "premium" kit.  It has correct small tongue flag terminals as original  This harness is for tail and brake lights as well as the fender top marker lamp.  Two wires run from your seat post terminal box the other wire runs from a stud on your fender to the marker lamp on top of the fender.

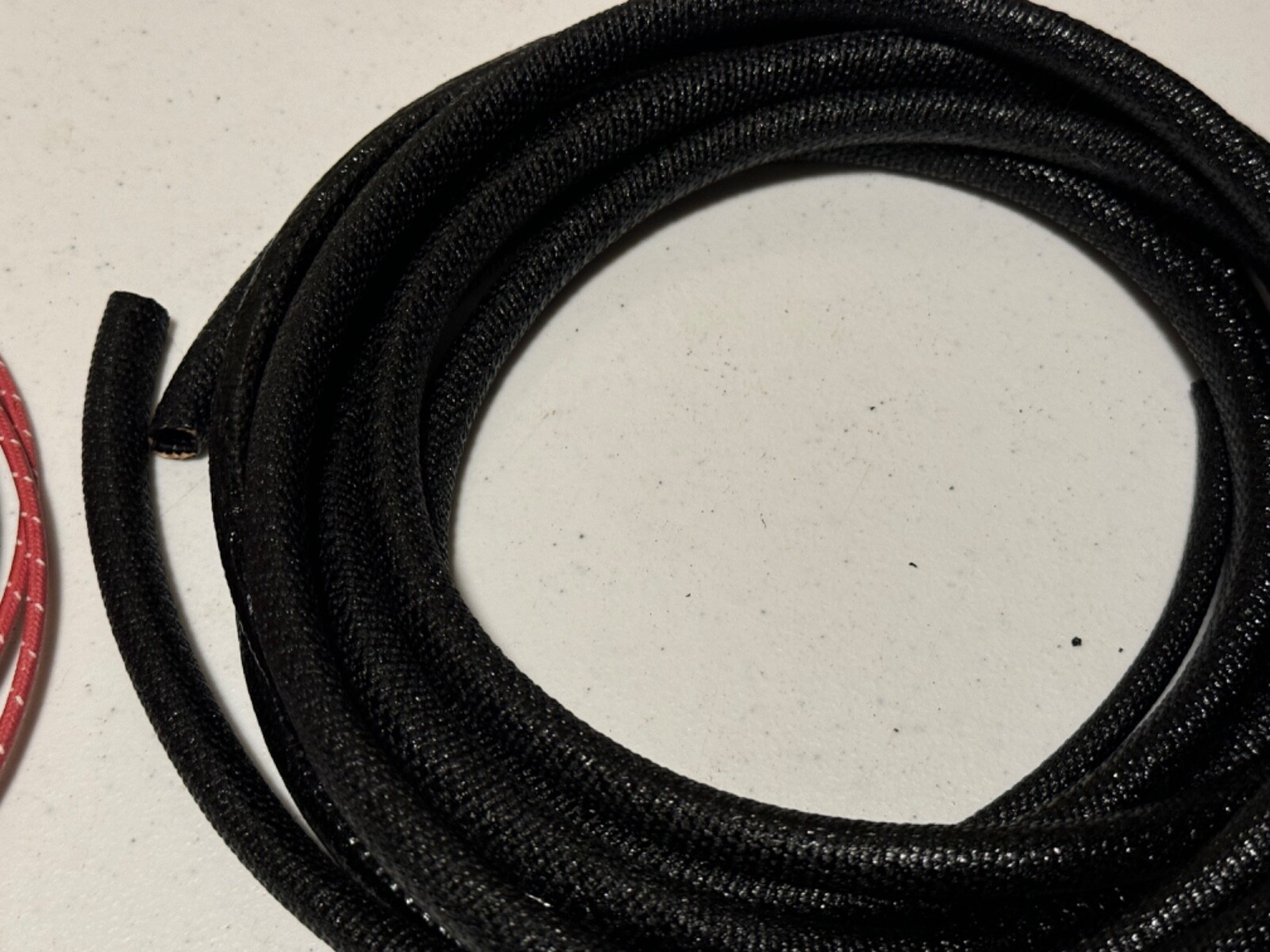

Wires and looms are pre-cut to correct lengths unlike other kits.

According to Bruce Palmer's "How To Restore Your Harley-Davidson" a terminal post was added in late 1947 eliminating the need to run a fender marker lamp wire all the way from the bike to the fender lamp.  This kit is made to utilize the fender lamp stud.  We have stud kits as well as complete clip kits to install these.

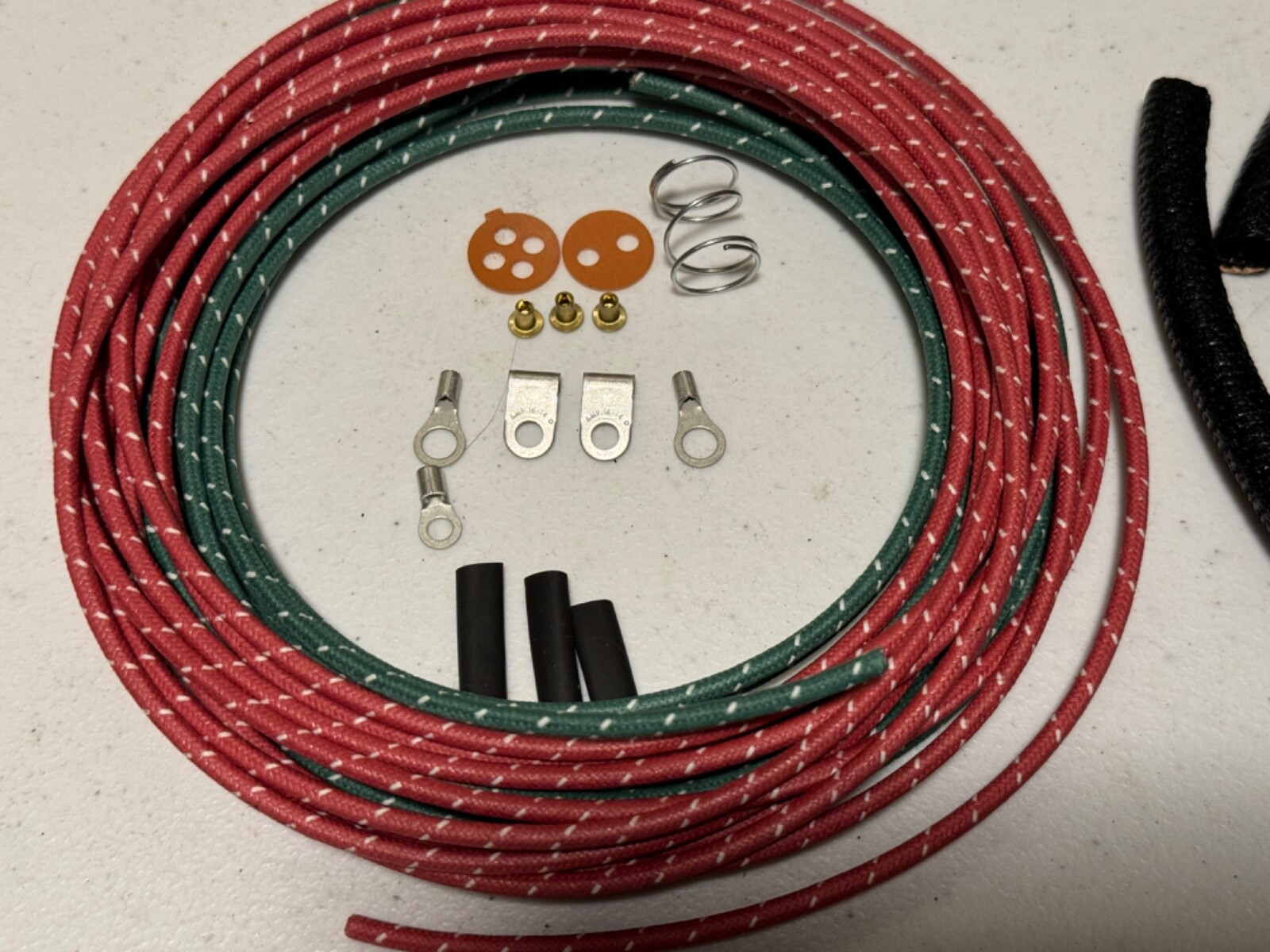

Comes with the terminals already crimped in place at the bike end, a complete tail lamp re-wire kit which is two phenolic plates, a spring, and two lamp button type contact terminals.  Also includes a lamp contact for your fender lamp as well as a #6 terminal in case you are using a reproduction tail lamp with a screw type terminal which was used on later lamps as well.  You will need to be able to solder the lamp contacts in place to complete the job.  We highly suggest soldering over crimping them unless you have the correct star type crimper to do this.

Each harness is made one at a time by hand in our shop in Cimarron, New Mexico and comes with detailed installation instructions.  We do also sell a clip kit for side car wires.  We do have a tail lamp only kit on another listing if you do not have a marker lamp on top of your fender.

We also sell complete premium harness kits for 1948 and 1949-1953 and 1954 WL, UL, and Panheads in our store.

If you can't find what you need here for your vintage 1915-1984 model HD model or cimarroncycleworks, just email and ask.We also sell a complete kit for 1936-1937, 1938-1946, 1948, 1949-1953, 1954-1957, 1958-1959 Duo-Glide, K & Sportster models, Hummer Knucklehead, WL, Servicar, VL, JD, RL, single & DL.  We also stock kits for 1939 to 1945 models, 1948-1954, and 1955-1969.

We also sell dimmer and horn switches, as well as complete wiring clip kits to finish out your installation.  We will be adding kits complete with the clips in the near future.  If you don't see them, just ask. Manufactured at and ships from Cimarron Cycle Works, LLC in beautiful Cimarron New Mexico, USA!
