Harley 1948-49 Tombstone Taillamp Light w/ Harley Guide Lens Bracket Panhead WL
- Product Code: 356297836336
- Availability: In Stock
-
$279.95

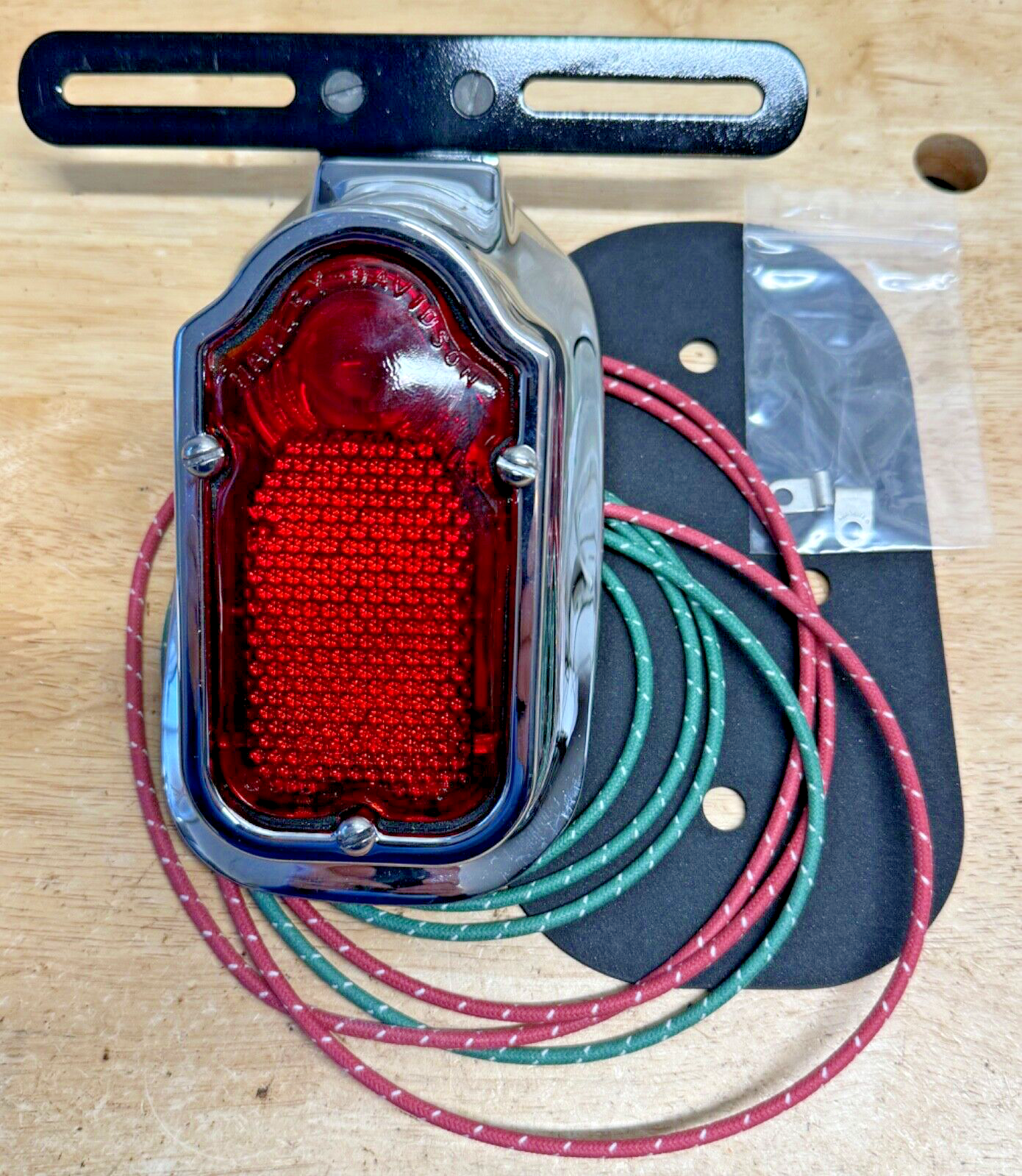

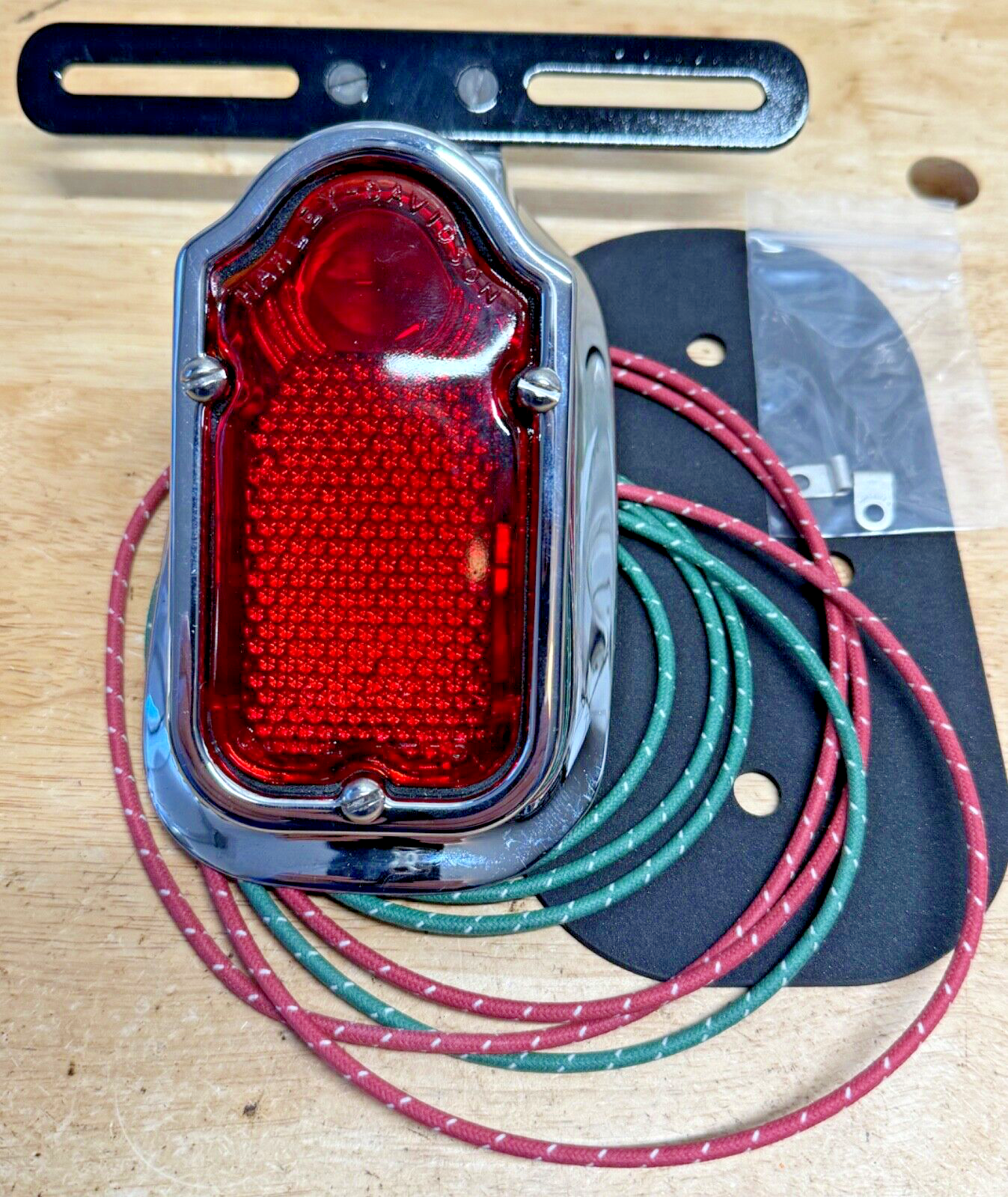

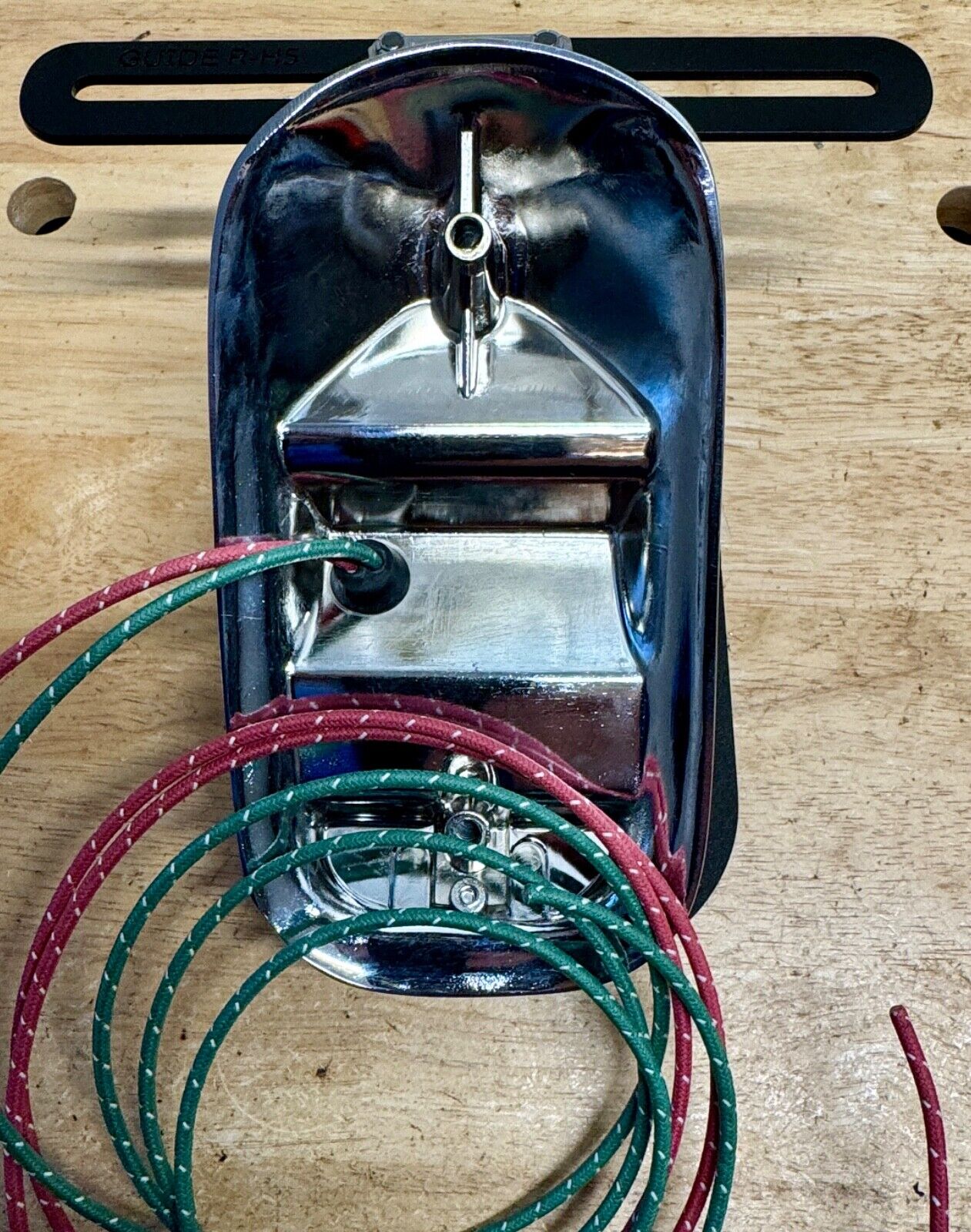

You are purchasing a replica tombstone tail lamp detailed as a 1948 lamp as it uses green with white tracer wires (56") and red with white tracer wires (56"). This comes with standard original style AMP crimp on flag terminals so you can do your wire connections exactly as done in 1948 on Panhead, UL, and WL models.
Mid-1948 and later tail lamps DID NOT have Guide R-H5 stamping on the front of the lamp body, only the back of the tag bracket. Once mounted, it will be virtually impossible to tell from an OEM lamp. We have the 1947 one on another listing.
This lamp can be used on 1947 to 1954 Harley Knucklehead, UL, WL, Panhead, & Servicar models. Both lenses are real glass, not plastic. Red lens is detailed correctly, gaskets are foam rubber, door screws are stainless steel, outlook lens clip is made from zinc plated spring steel, . This is a Cimarron Cycle Works exclusive.

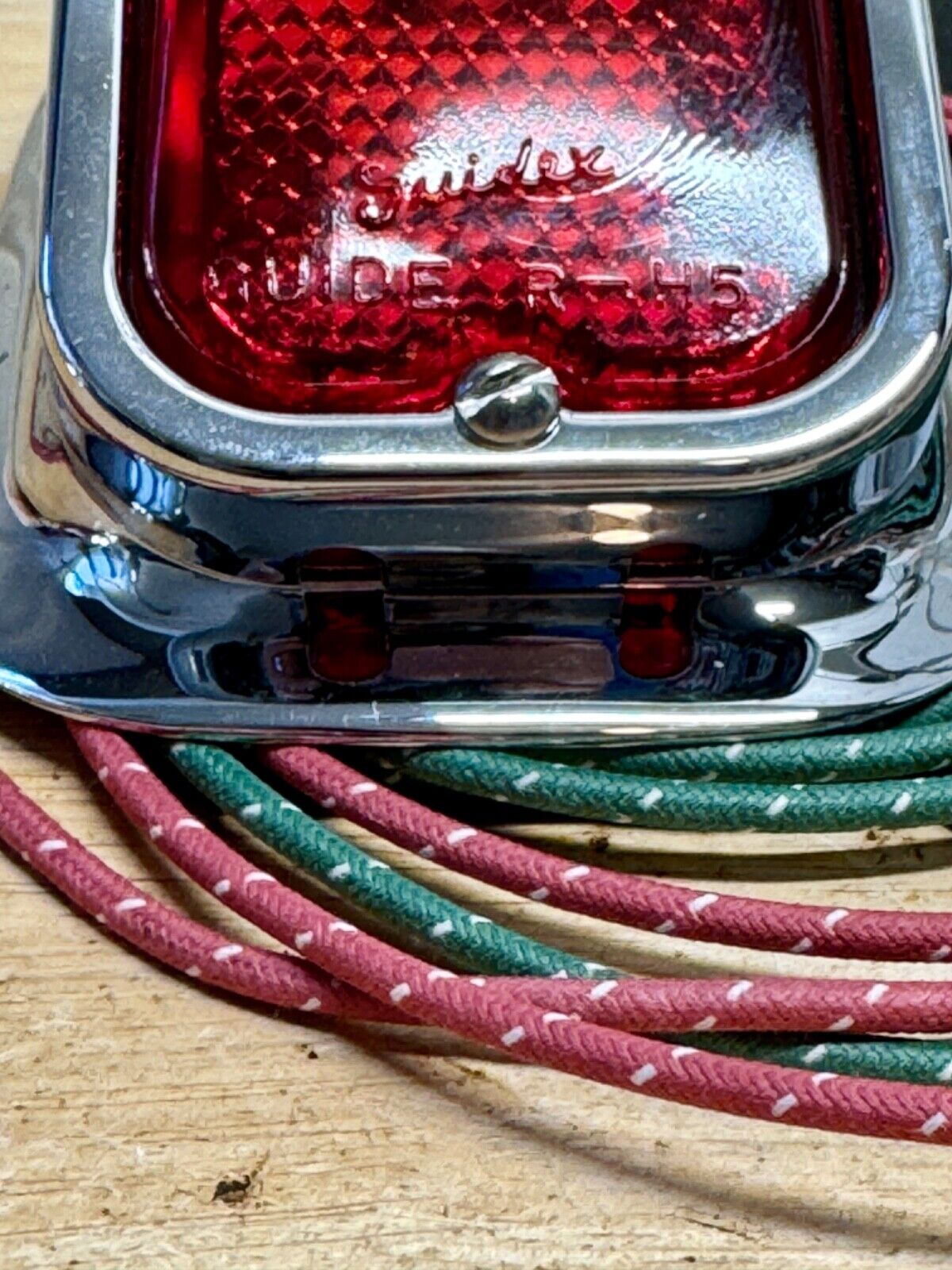

"Harley-Davidson" “Guidex” and “GUIDE R-5” inscribed on the bottom of the lens. Red lens is a later production or reproduction lens depending on whom you talk to it does not have the series of numbers on the back lip of the lens.
You get the following:

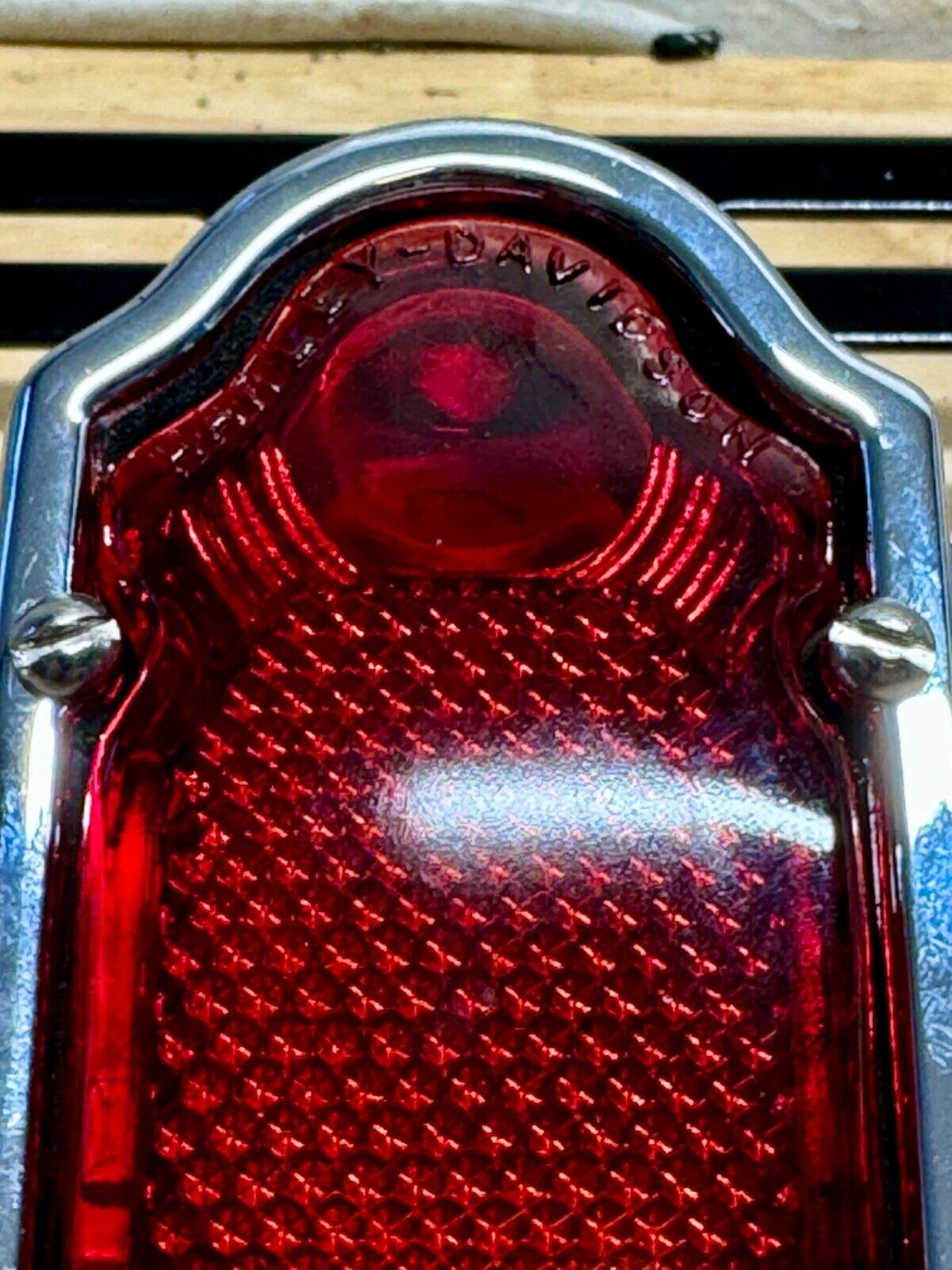

- Correctly detailed Harley-Davidson red lens with Guidex and Guide R-H5

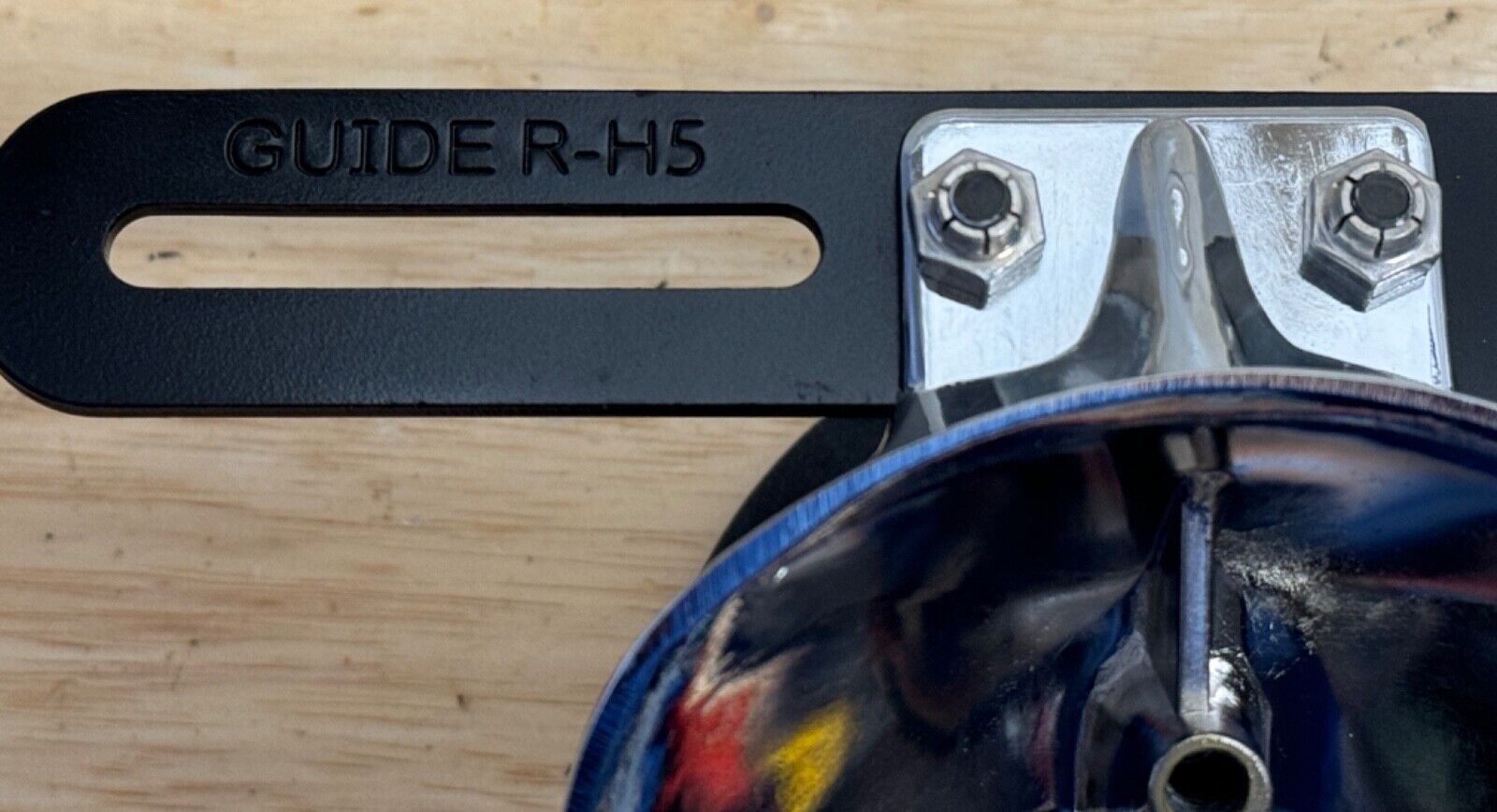

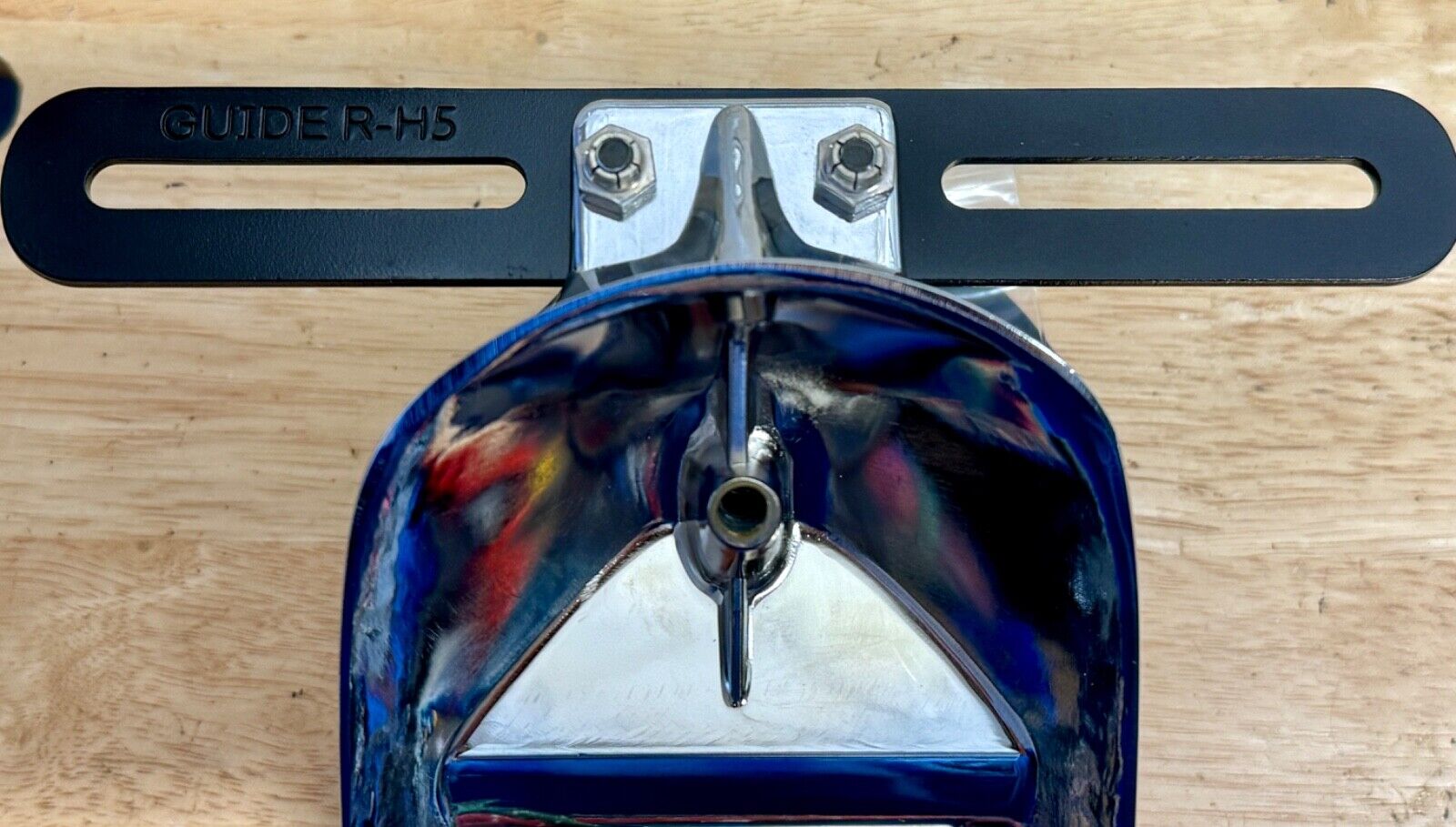

- Correct stamped Guide R-H5 tag bracket
- Correct outlook or tag clear lens

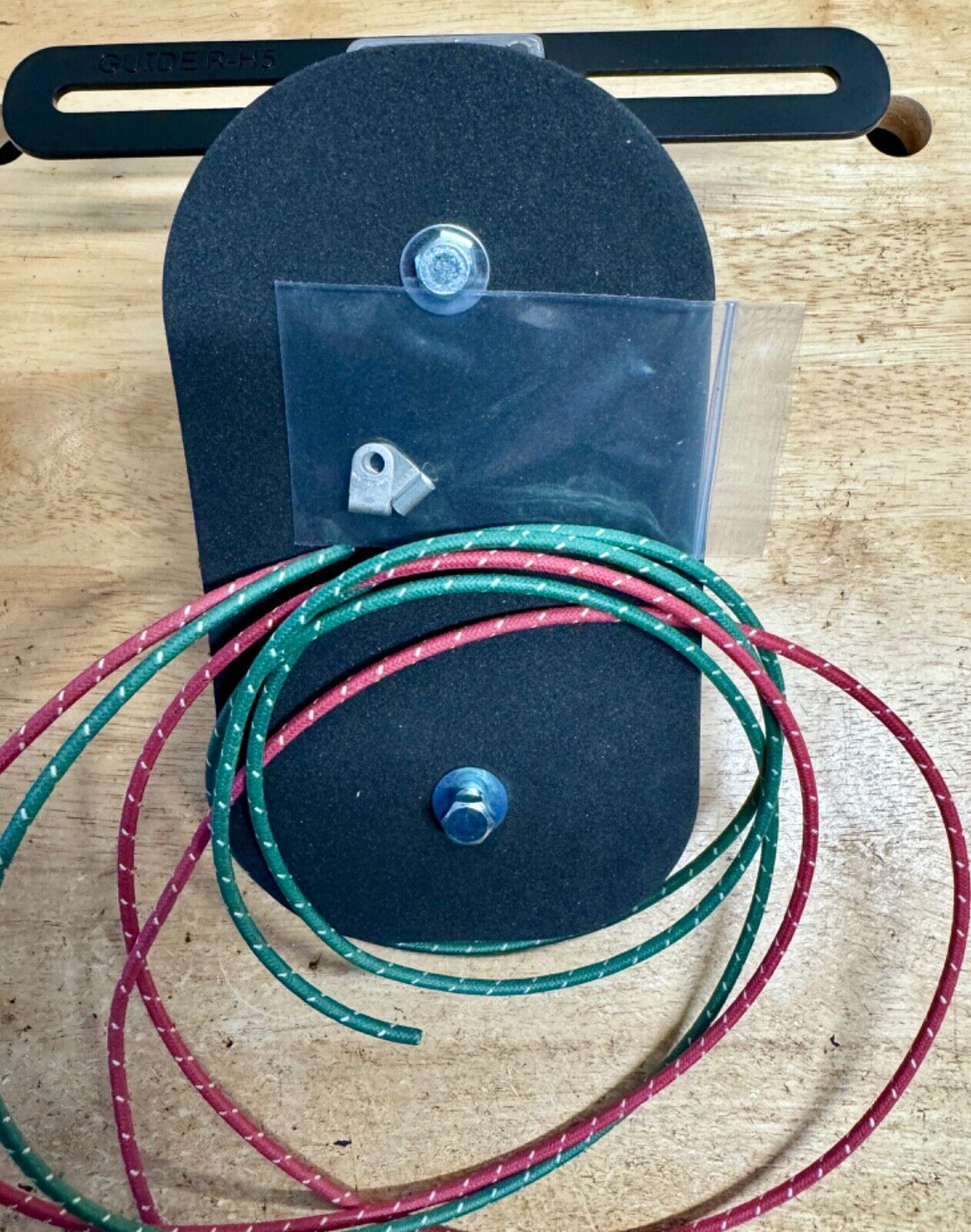

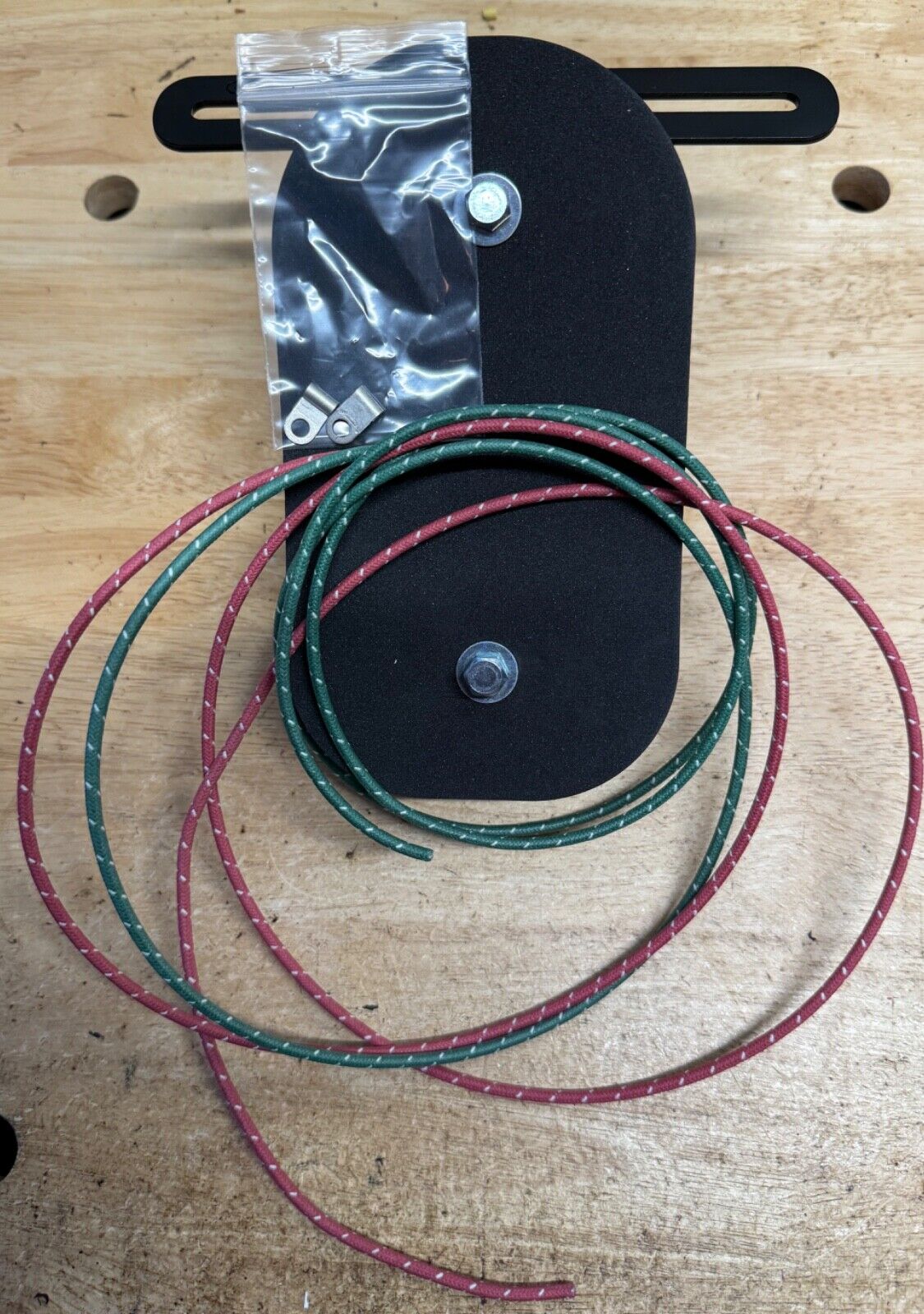

- Foam gaskets constructed as original, including base gasket
- Countersunk tag bracket screws and cad plated flex lock nuts
- Slotted door bezel screws
We also stock the early and late tag brackets and wiring harnesses for these lamps. We have a huge stock of Knucklehead, Panhead, and flathead parts including oil and fuel lines, wiring harnesses, saddles, saddlebags, correctly detailed hardware, accessories, rider's handbooks, service and parts manuals, etc. Don't see what you need here or cimarroncycleworks for your 1915-1984 Harley? Just email and ask.
Located at and ships from Cimarron Cycle Works, LLC in beautiful Cimarron, New Mexico, USA!
Fits the following:
- 1948 to 1954 EL, FL, 61” & 74” OHV Panhead Springer & Hydra-Glide
- 1947 to 1954 G Servicar (takes two)
- 1947 EL, FL 61” & 74” OHV Knucklehead
- 1947-1948 UL ULH 74” & 80” Big Twin side valve or flathead
- 1947-1952 W, WL, WLD, WLA
