Harley 1941-42 W WL WLA WLC Rear Fender Mounting Hardware Kit Plain Head Mount

  • Product Code: 292330006720
  • Availability: In Stock
  • $58.95


You are buying a USA Made 45" solo twin rear fender mounting kit for Harley-Davidson 45" solo models which is detail-correct for 1941 and early 1942 45" solo models, though I’m aware all of this hardware can be used on earlier and later model 45’s.  Includes all pieces shown. Please consult your own parts or service manual for proper reference.

This is detail correct for WLA, WLC, and WL models as the 5/16" bolts are plain head and this uses the truss head type carriage bolt for the rear fender clip.  The 061 1/2" long plain head bolt is known NOS OEM cut in the H-D screw shop back in the 1930s.

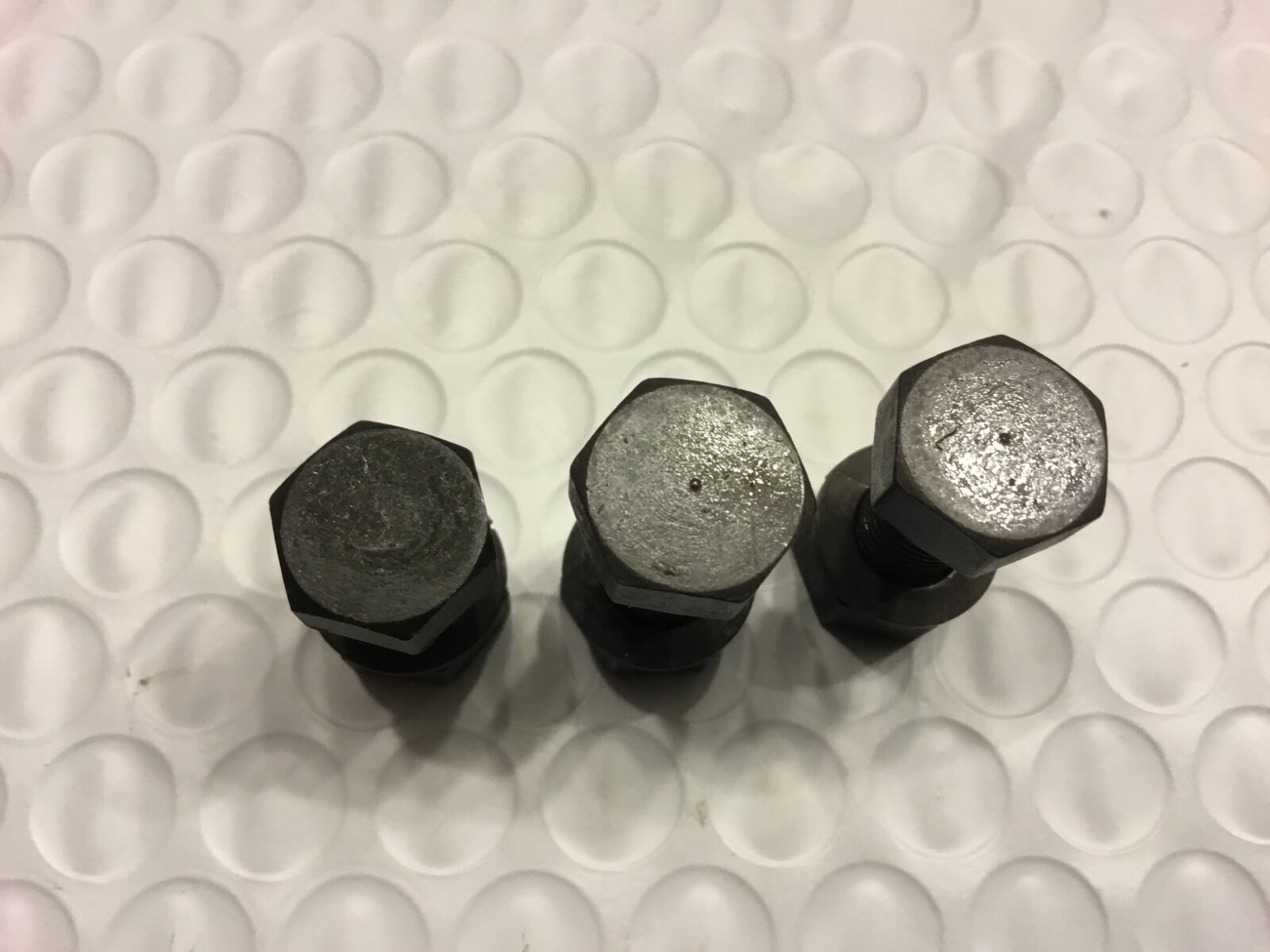

Chandler Products CP-1035 bolts first appear in 1942 or early 1943 and could be found on Harleys to 1949.  CP-1038 seems to have first appeared in 1947 or 1948 so a mix of bolt heads on common hardware would be expected in the late 1940's.

We do carry a 1929-1940 detail correct 45" kit as well as an early 1942-1948 CP-1035 kit and 1948-1952 CP-1038 Kit for 45 solos.  Please check our eBay store for many other detail correct kits for your vintage Harley.  No one pays attention to detail like we do for the most accurate hardware kits.

All USA made parts.

Detail-correct for the following:
  • 1941-early 1942 W, WL, WLD, WLDR, WR, WLA, WLC

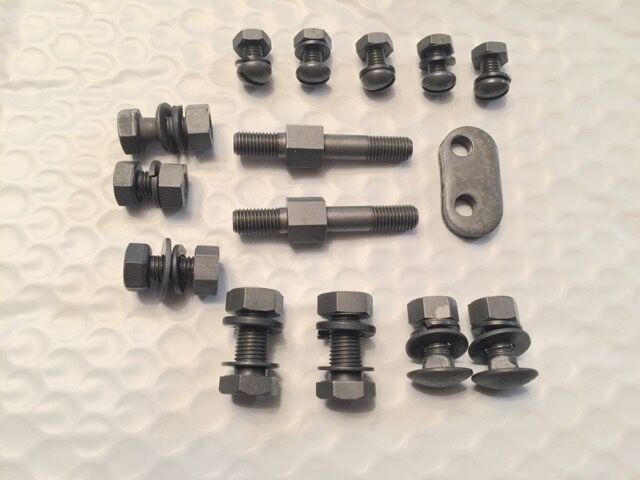

You get the following in this kit:

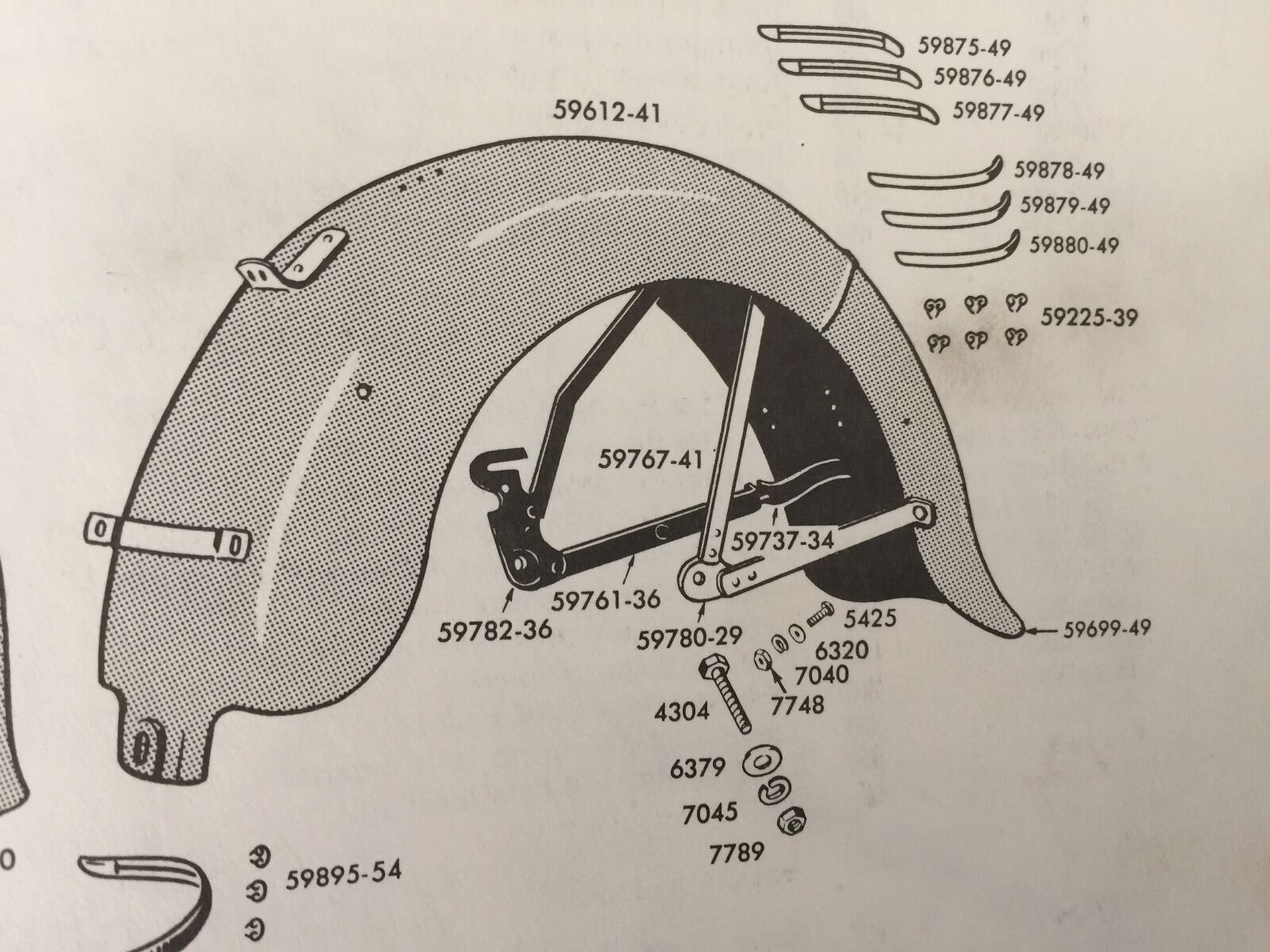

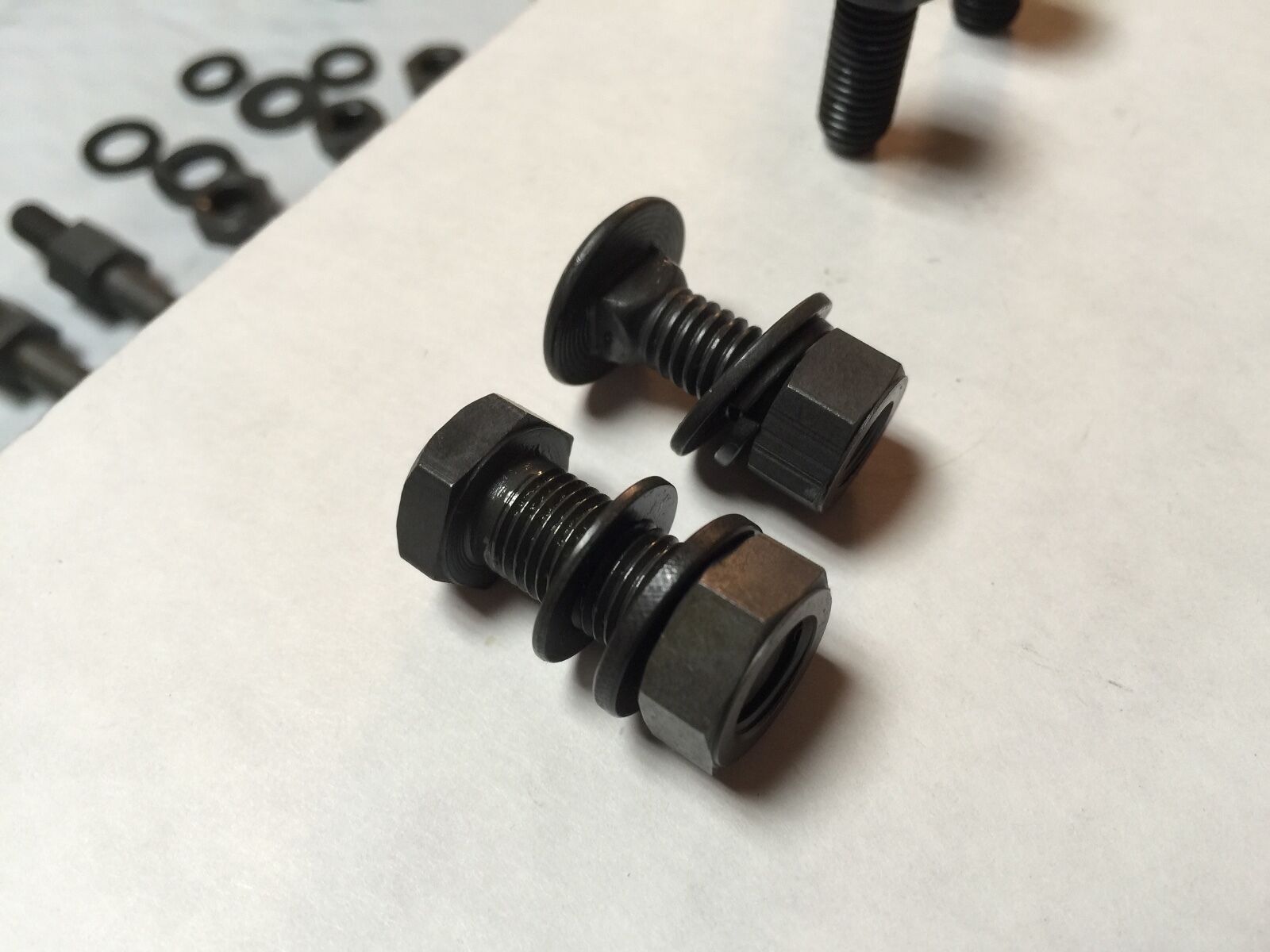

  • 2 ea. 4304 (early 2823-26), Rear fender brace bolt, 3/8”-24 N.F. x 29/32"
  • 2 ea. 7789, (early 0129) Rear fender brace nut, 3/8”-24 N.F. x 1/4” x 9/16"
  • 2 ea. 6379, (early 0226) Rear fender brace flat washer, 3/8” x 5/8” x 3/64"
  • 2 ea. 7045, (early 0261)Rear fender brace split lock washer, 3/8” x 5/8” x 1/16"

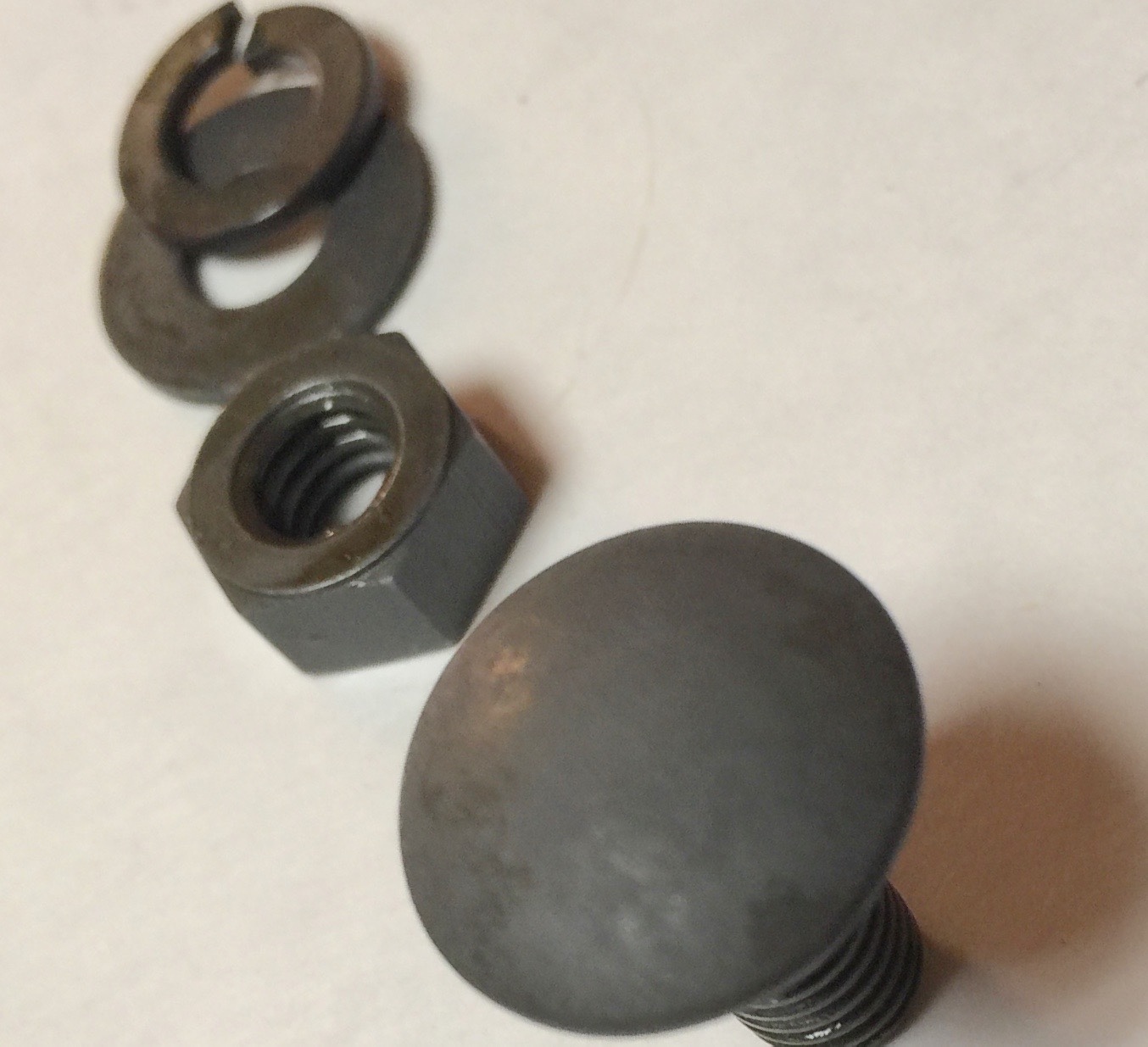

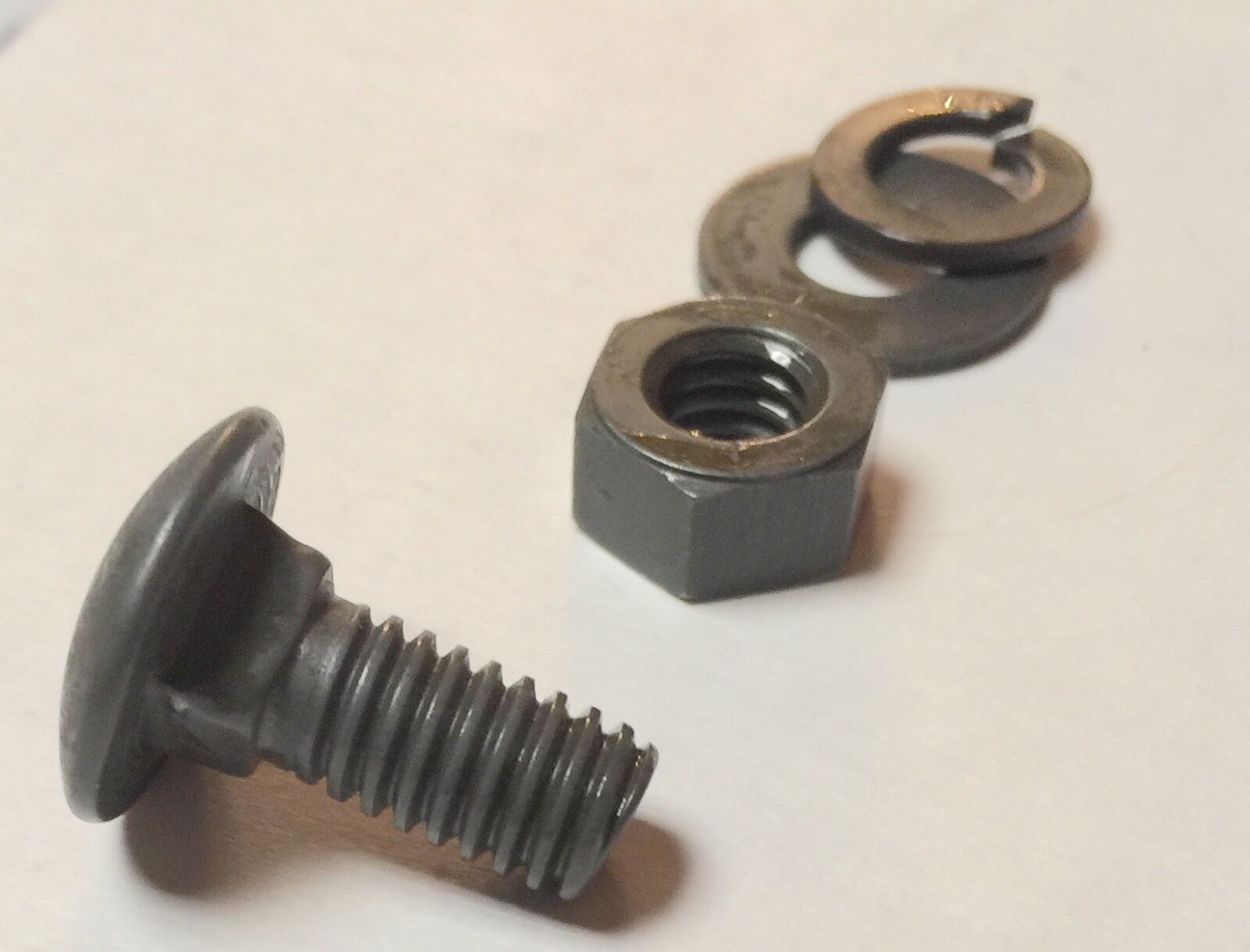

  • 2 ea. 5425, (early 3743-23) Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
  • 2 ea. 7748, (early 0111) Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
  • 4 ea. 6320, (early 0214) Brace bracket flat washer 5/16” x 11/16” x 1/16”

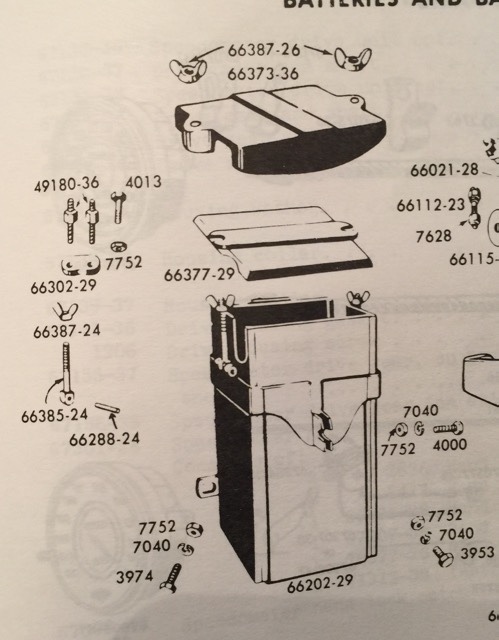

  • 2 ea. 3974 (early 064), Rear lower bolt, 5/16-24 N.F. x 3/4” x 1/2" Stamped CP-1035
  • 1 ea. 3953 (early 061), Rear lower bolt, 5/16-24 N.F. x 1/2” x 1/2" Stamped CP-1035

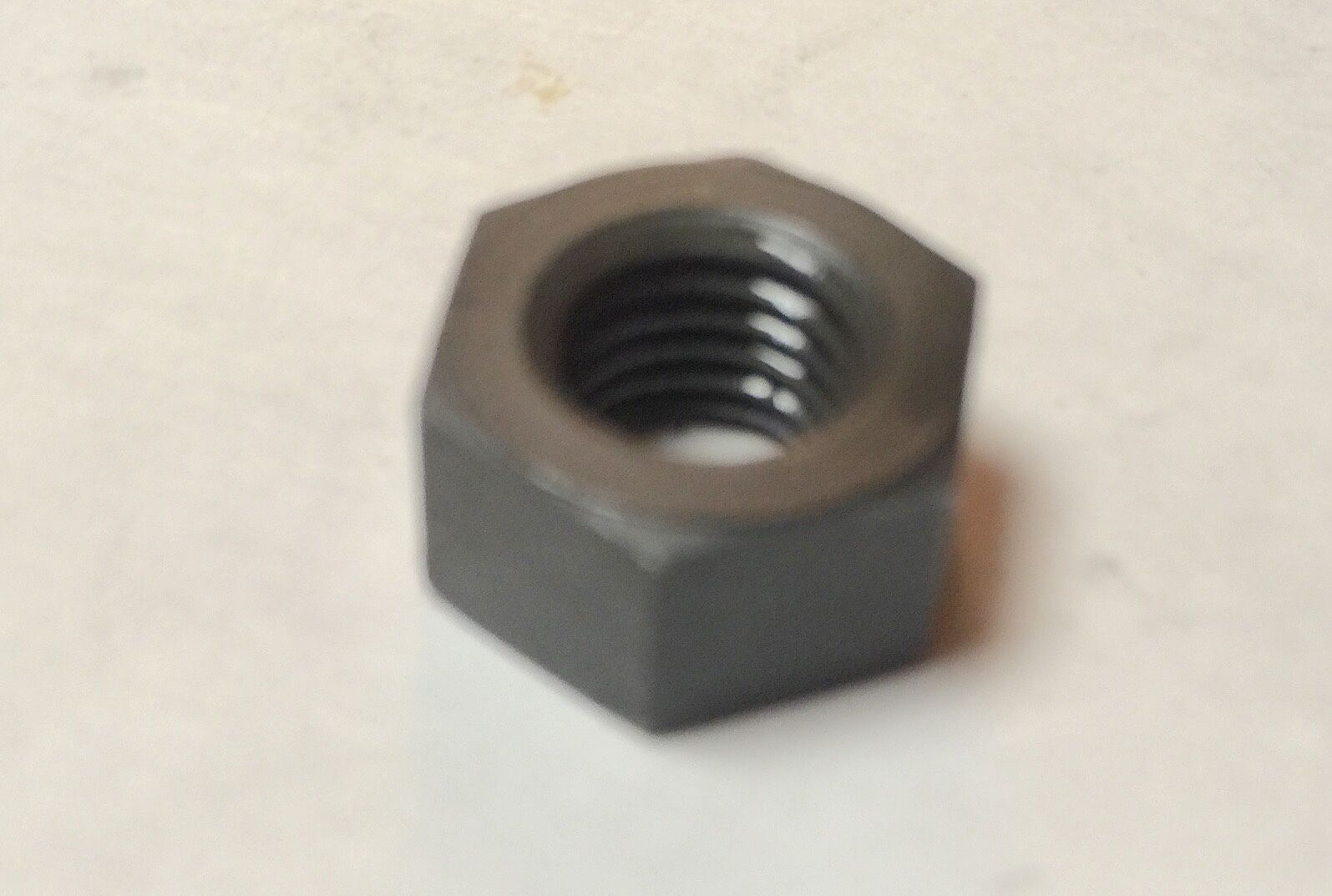

  • 3 ea. 7752, (early 0117) Nuts, 5/16”-24 N.F. x 17/64” x 1/2”
  • 3 ea. 7040, (early 0259) Split lockwasher 5/16”

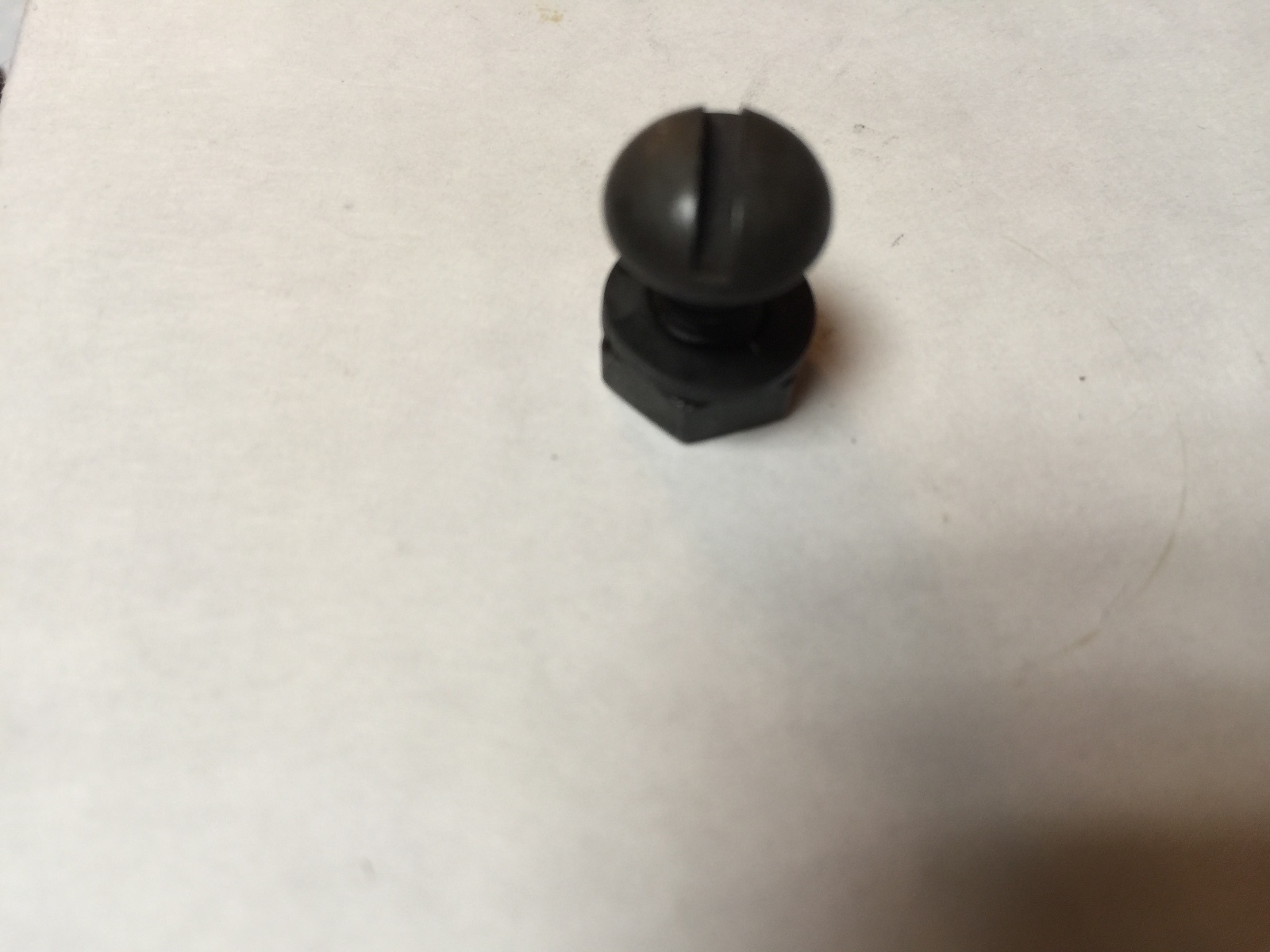

  • 5 ea. 2762, (early 051) Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head (two included for 1939-1946 Beehive tag bracket)
  • 5 ea. 7035, (early 0256) Split lock washer, 1/4” x 1/2” x 1/16"
  • 5 ea. 7691, (early 0108) Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
