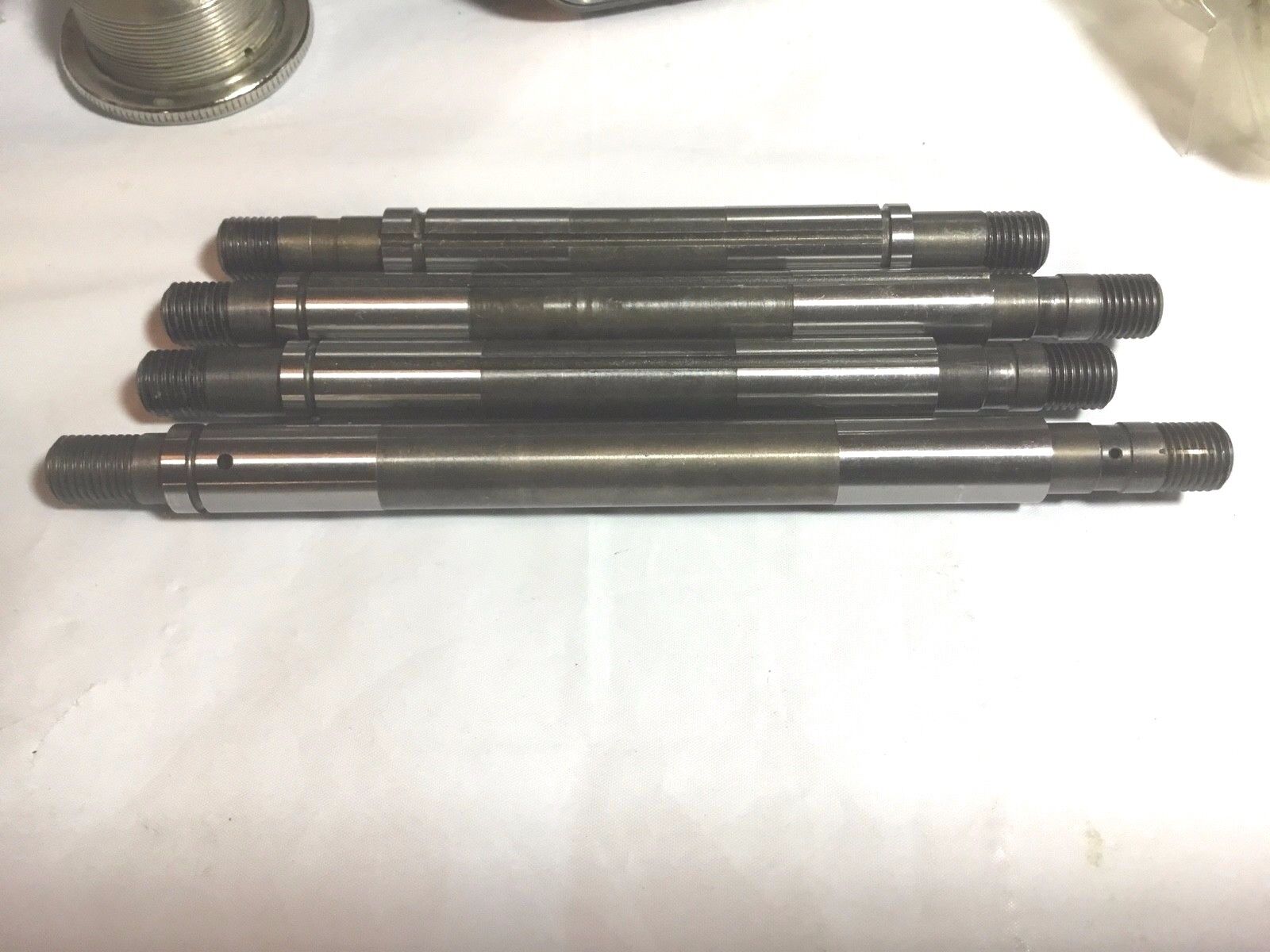

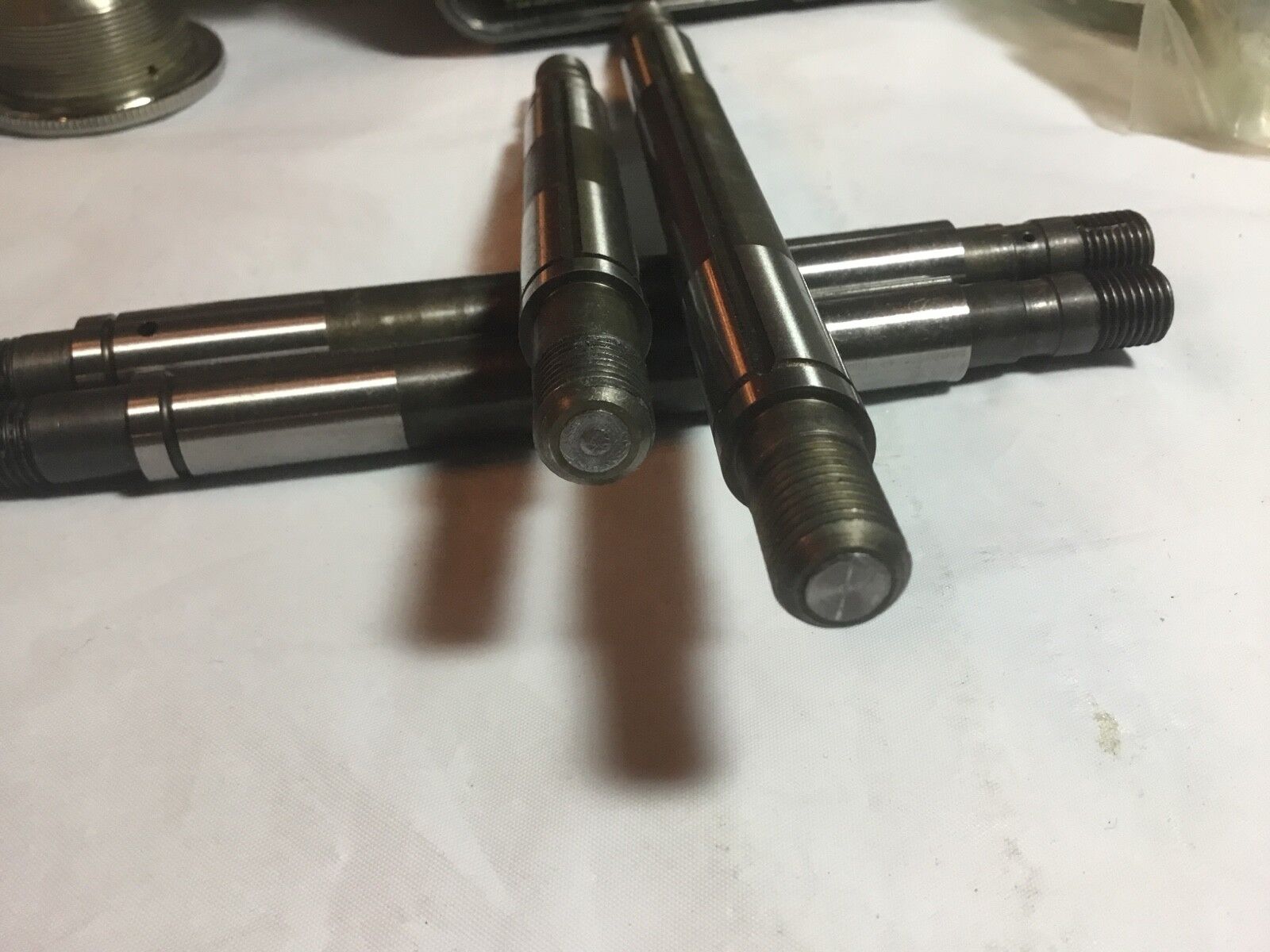

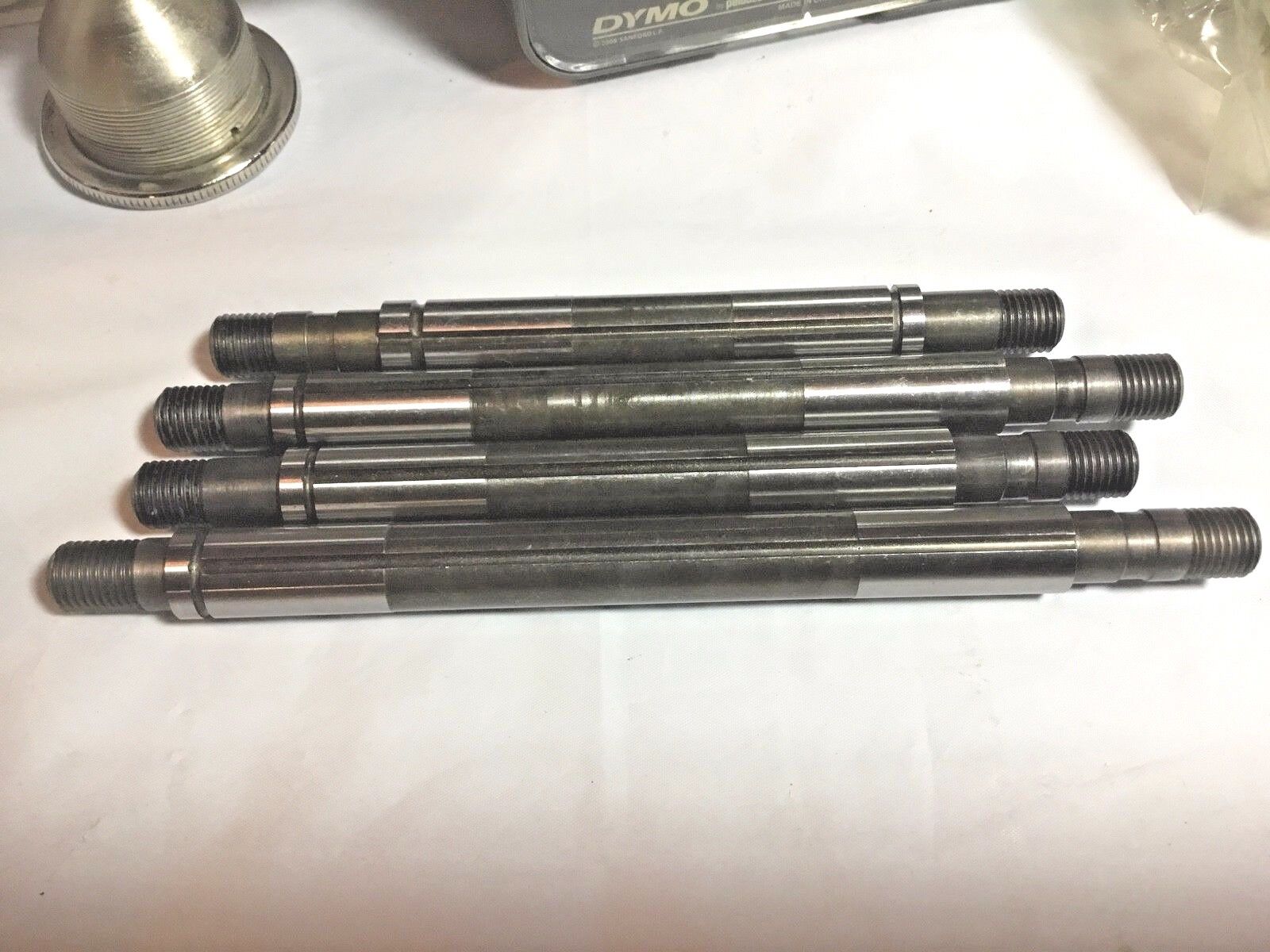

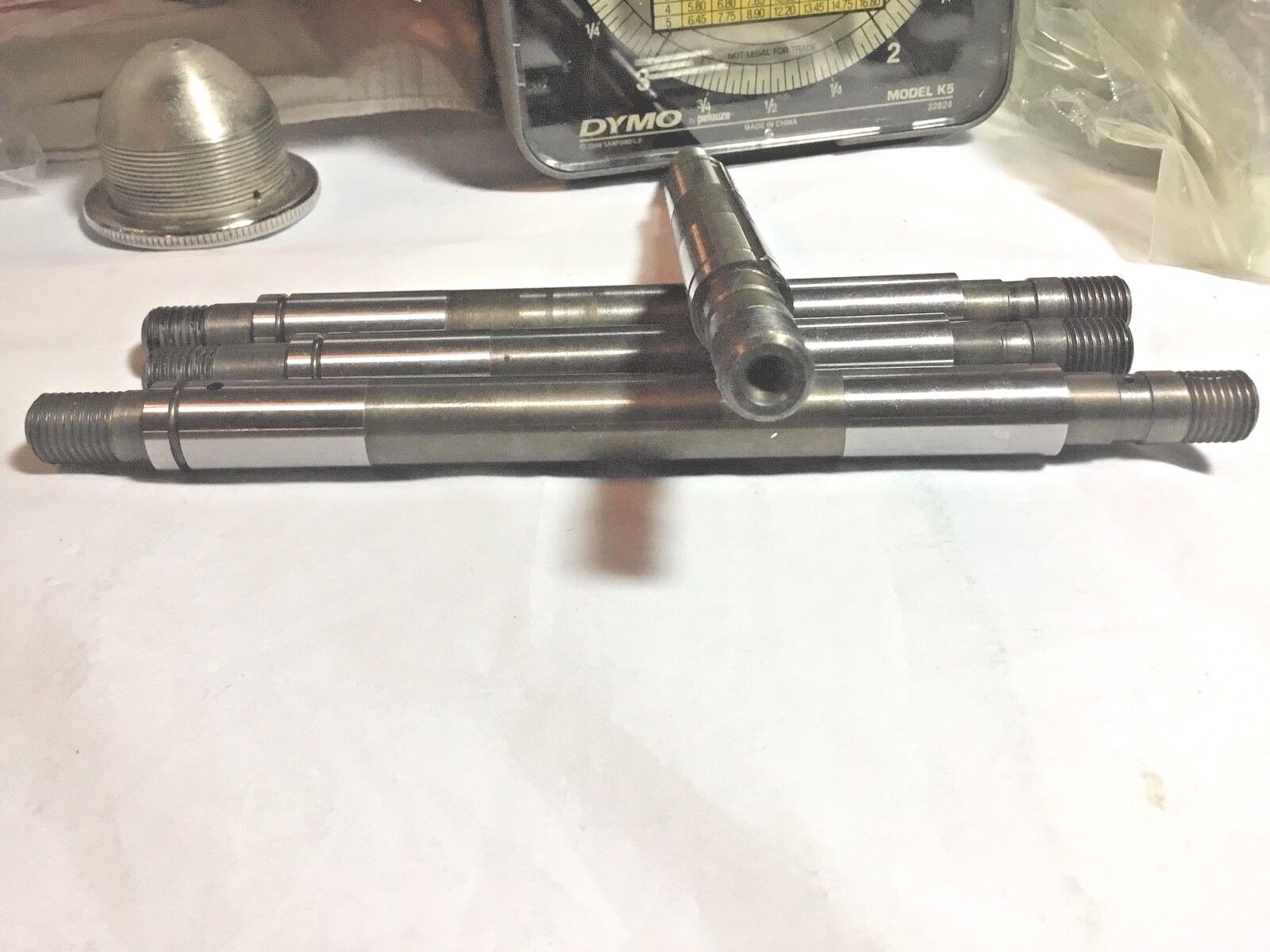

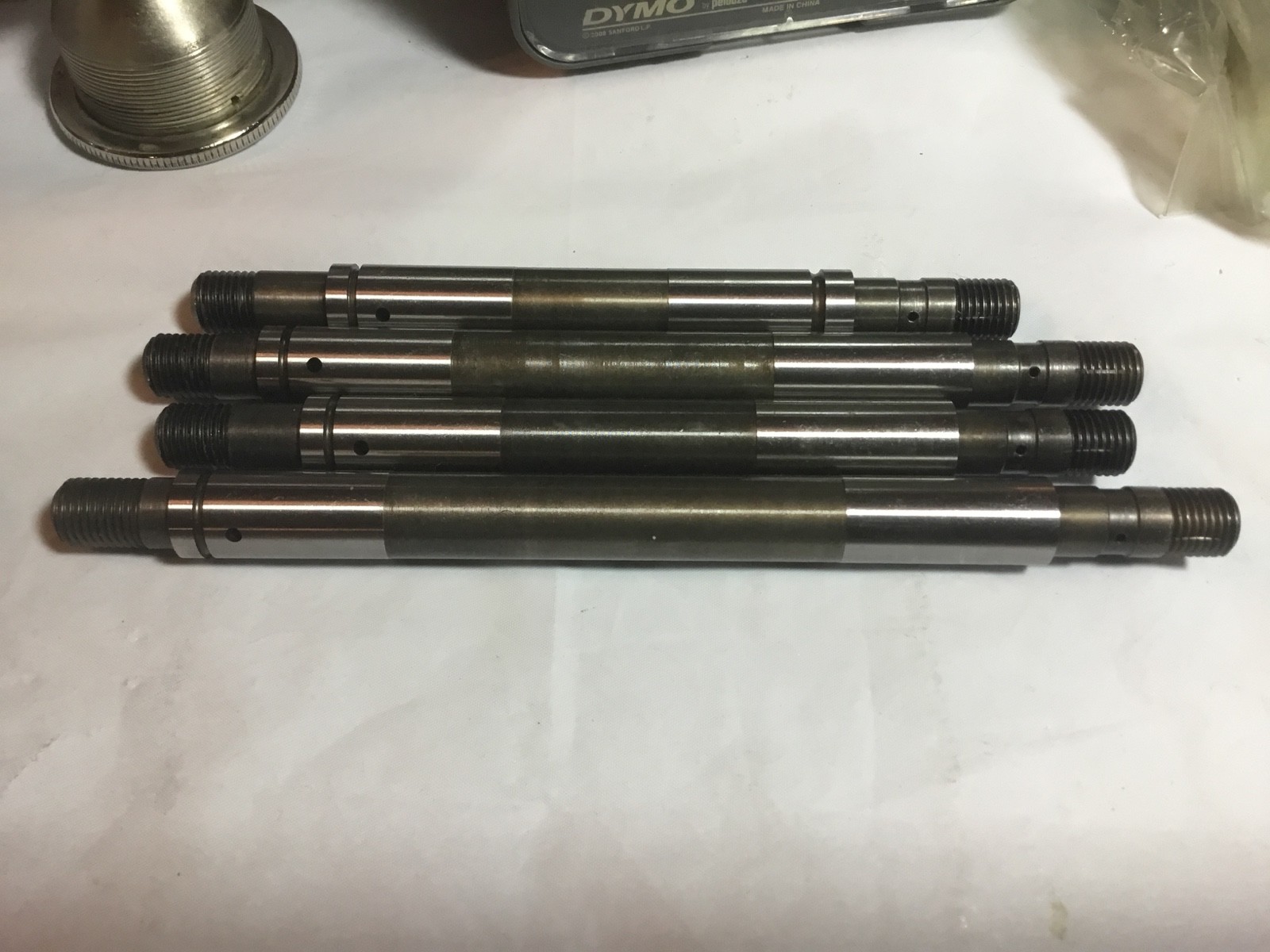

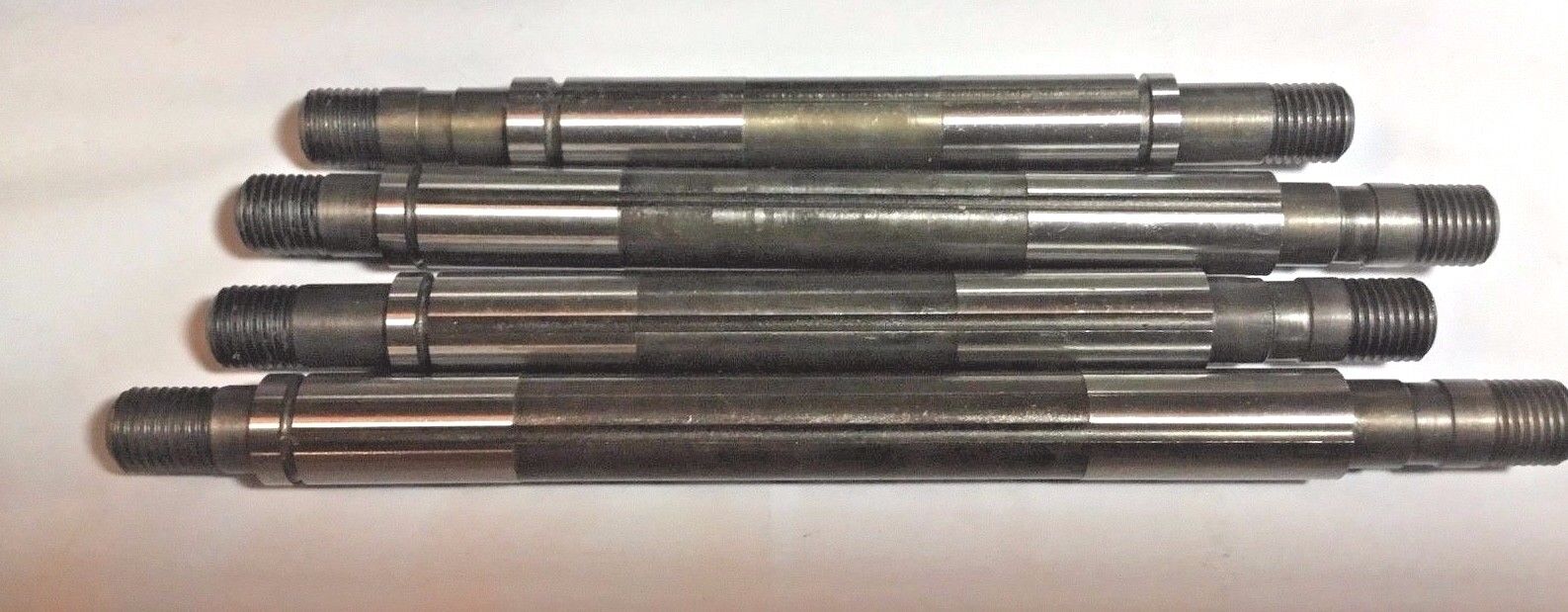

Harley 1936-Early 39 EL Knucklehead Slotted Rocker Shafts Set Of 4 Reproduction

  • Product Code: 292909767002
  • Availability: In Stock
  • $249.95


You are purchasing one set of European-made reproduction rocker arm shafts for 1936 to early 1939 E & EL Knucklehead models.  Fits as a perfect replacement for your OEM set.  Machining is exact and hardness same as HD did back in the day.  My 1941 parts manual says this style shaft was used into early 1939, though wisdom which was imparted to me over the years was that these were two years only.  I do note that the part number suffix was changed to -39 with the later style shafts.  Please do your own research and make sure you are using with the correct rockers and these are what you need.  These do require adjustment which is covered in the Shop Dope series and we also sell an adjustment tool on another listing.

We are increasing our Knucklehead offerings, please keep an eye on our page.  We stock a huge assortment of correct hardware for your early Knuckle including hard to find bits as well as a copper oil line set for 1936 only.

If you cannot find what you need here or cimarroncycleworks just email and ask.

Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!

Includes the following:

  • 105-36
  • 106-36
  • 107-36
  • 108-36

Shafts are the following lengths: The front exhaust shaft is 5.280 ", front intake shaft is 4.095", rear intake shaft is 3.555" and the rear exhaust shaft is 4.645".

Used on the following models, please cross-check your own reference material to make sure this is right for you:
  • 1936-1937 E, EL, ELS 61" OHV Knucklehead, may fit 1938 into early 1939.
