Harley 1931-34 VL Wiring Harness Kit w/ Correct 1614-18 Terminals USA

  • Product Code: 355583616796
  • Availability: In Stock
  • $179.95

You are purchasing one new USA Made wiring harness kit for 1931-1934 Harley-Davidson VL models with the single headlamp. This is everything you need from nose to tail to wire your bike.  The tail lamp wire included is for a marker lamp only, it does not include the provision if you have added a stop lamp switch and dual filament lamp to your bike, though we can provide that for extra cost and add it to your order.

This kit is correctly detailed for 1931 to 1934 V models with the fork mount tool box which brought the horn and headlamp further out from the switch box and assumes you are using a Motolamp headlamp.  RL models used a longer relay wire, so we sell an RL kit separately.  The 1931 DL was entirely different, we also sell a kit for those.

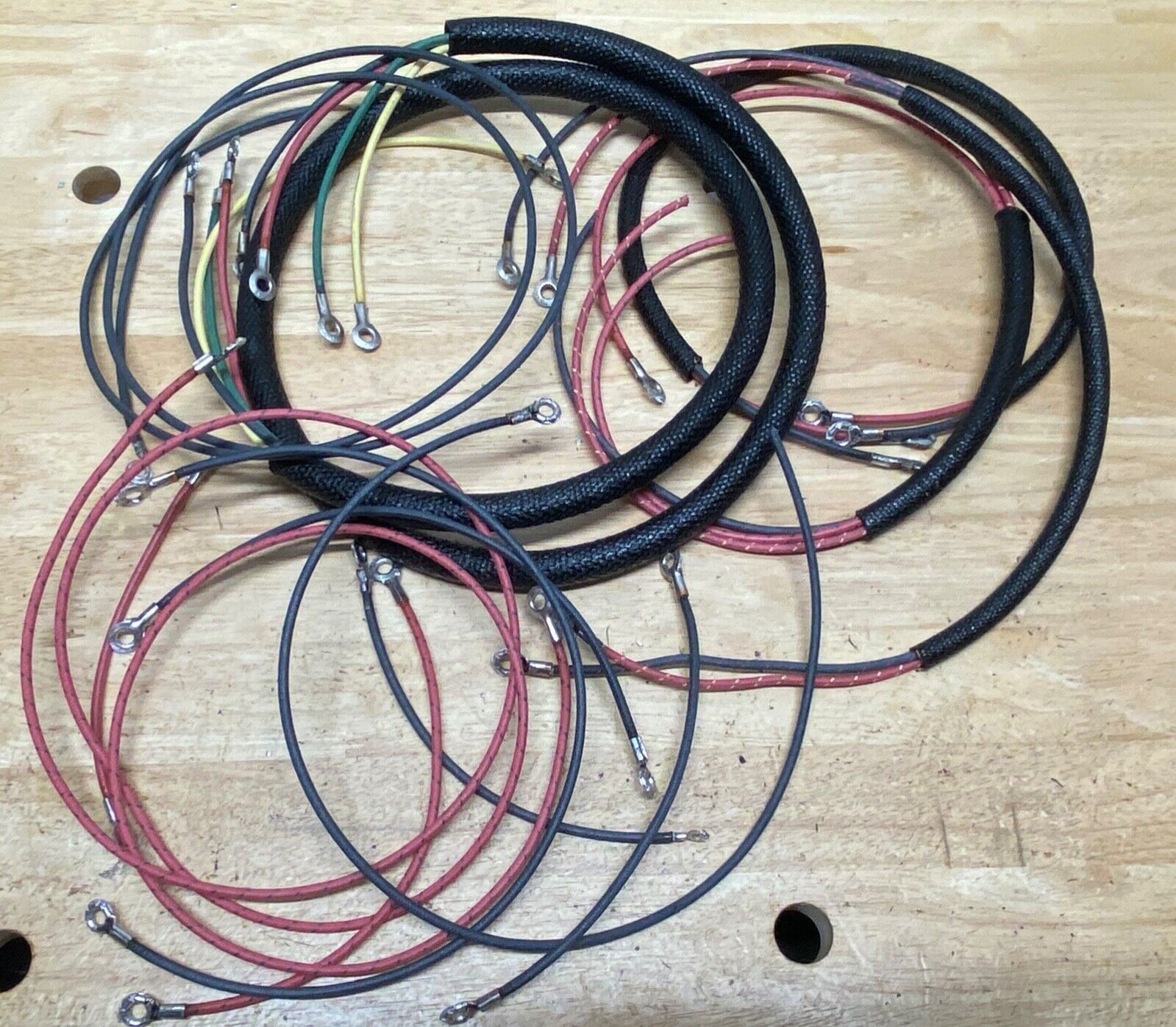

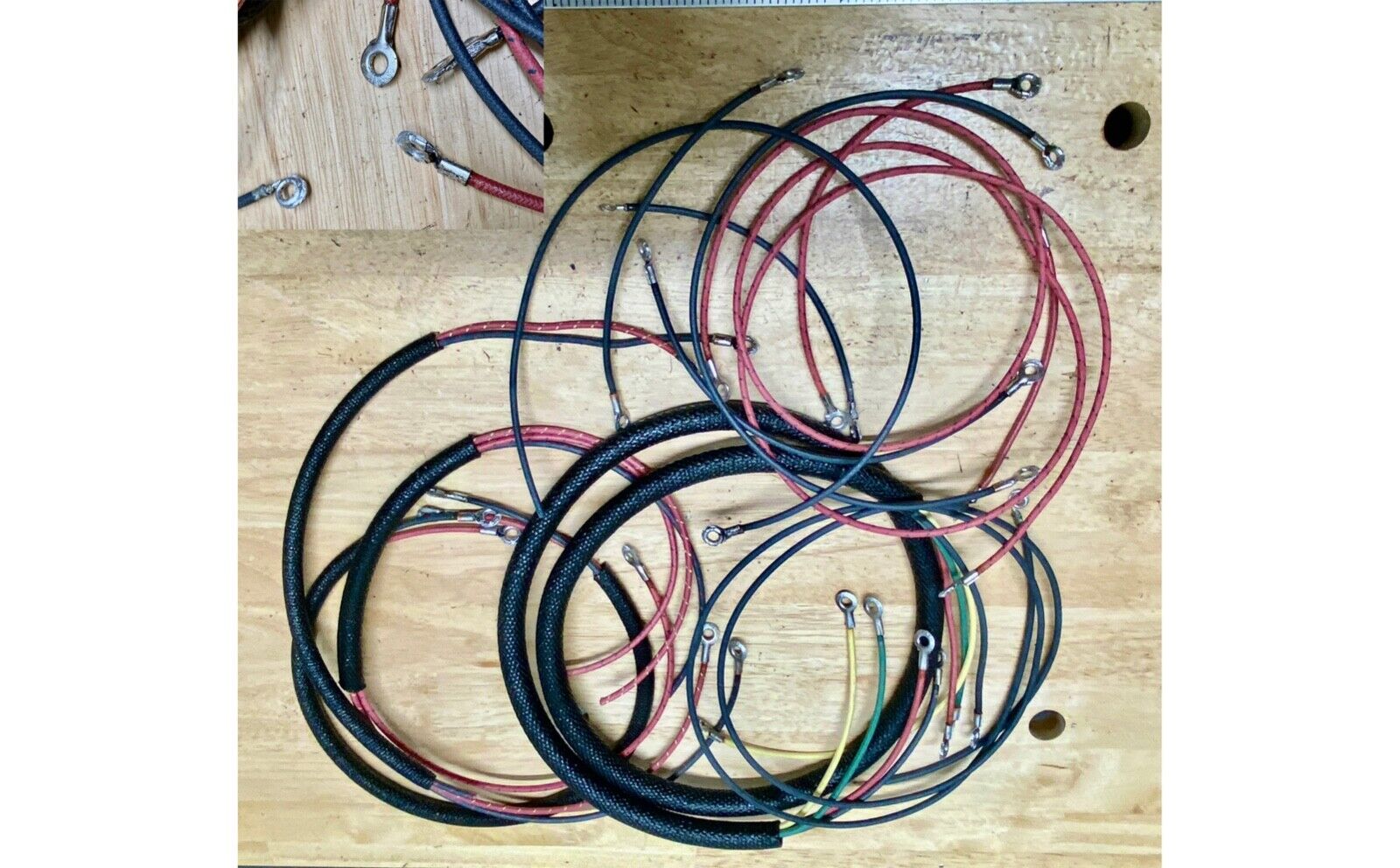

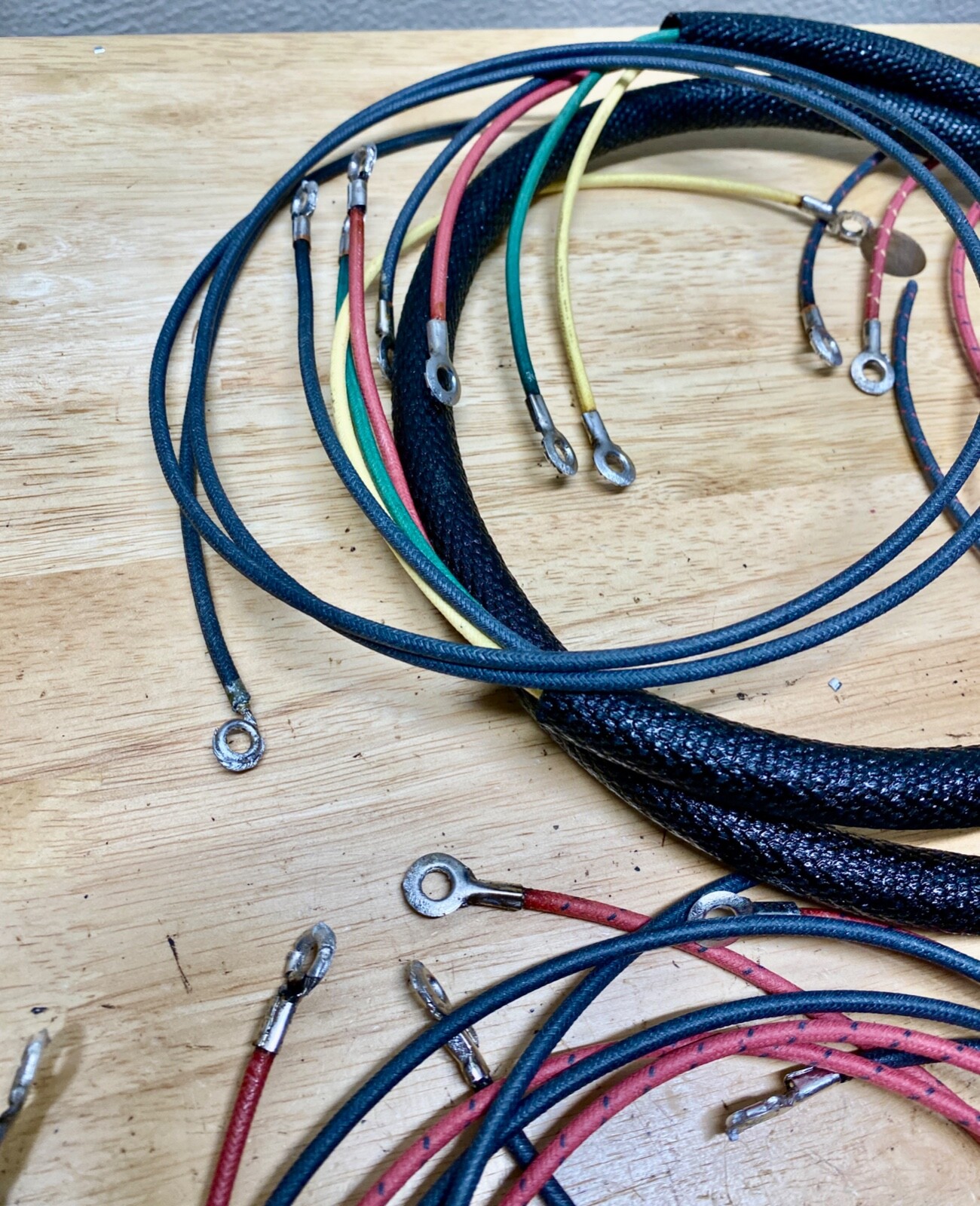

Check the detail on the harness, the ring ends are soldered into place just as originals were.  We had these long-obsolete terminals reproduced in 2023 at considerable expense.  To the best of our knowledge, we are the only wiring kit manufacturer in the world using these correct ends.  Other kits use common crimp terminals or soldered open eyelet terminals with no barrel to support your wire which prevents fractures in the terminals or wires at the terminal which can lead to failure.

This kit utilizes slip on asphalt loom to group the wires.  We do sell the same kit with cotton woven loom as original off this site.  Email us if this is what you need.

We now sell the following kits with these correct terminals:

-1929 JD
-1929 DL
-1929 C Single
-1930 DL
-1930 VL
-1931 DL
-1931-1934 VL
-1931-1934 C Single
-1932-1934 RL
-1935-1936 VL
-1935-1936 RL

We also sell the harness with pre-wired dimmer and horn switches, as well as complete wiring clip kits to finish out your installation.  We will be adding kits complete with the clips in the near future.  If you don't see them, just ask.

We manufacture wiring harnesses for most USA produced H-D models from 1926-1969 right here at our shop in beautiful Cimarron, New Mexico, USA!

Used on the following:
  • 1931-1934 V, VL, VC, VLC, VD, VLD, VE, VLE, VH, VLH 74" & 80" side valve or flat head
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
