Harley 1723-29 VL RL WL DL UL Coil Mount U-Bolts & Nuts 1930-47 DL VL RL WL
- Product Code: 293905779283
- Availability: In Stock
-
$36.95

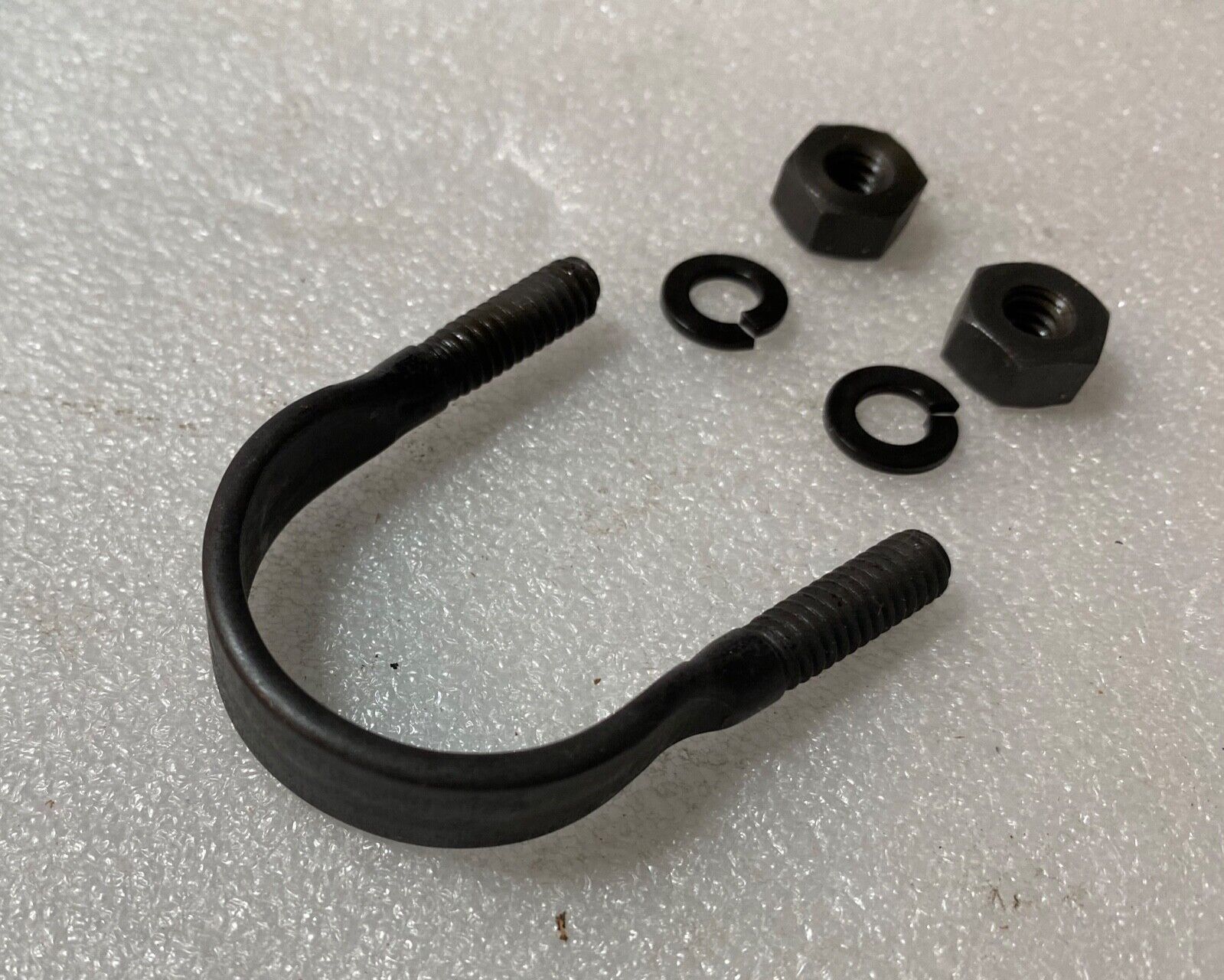

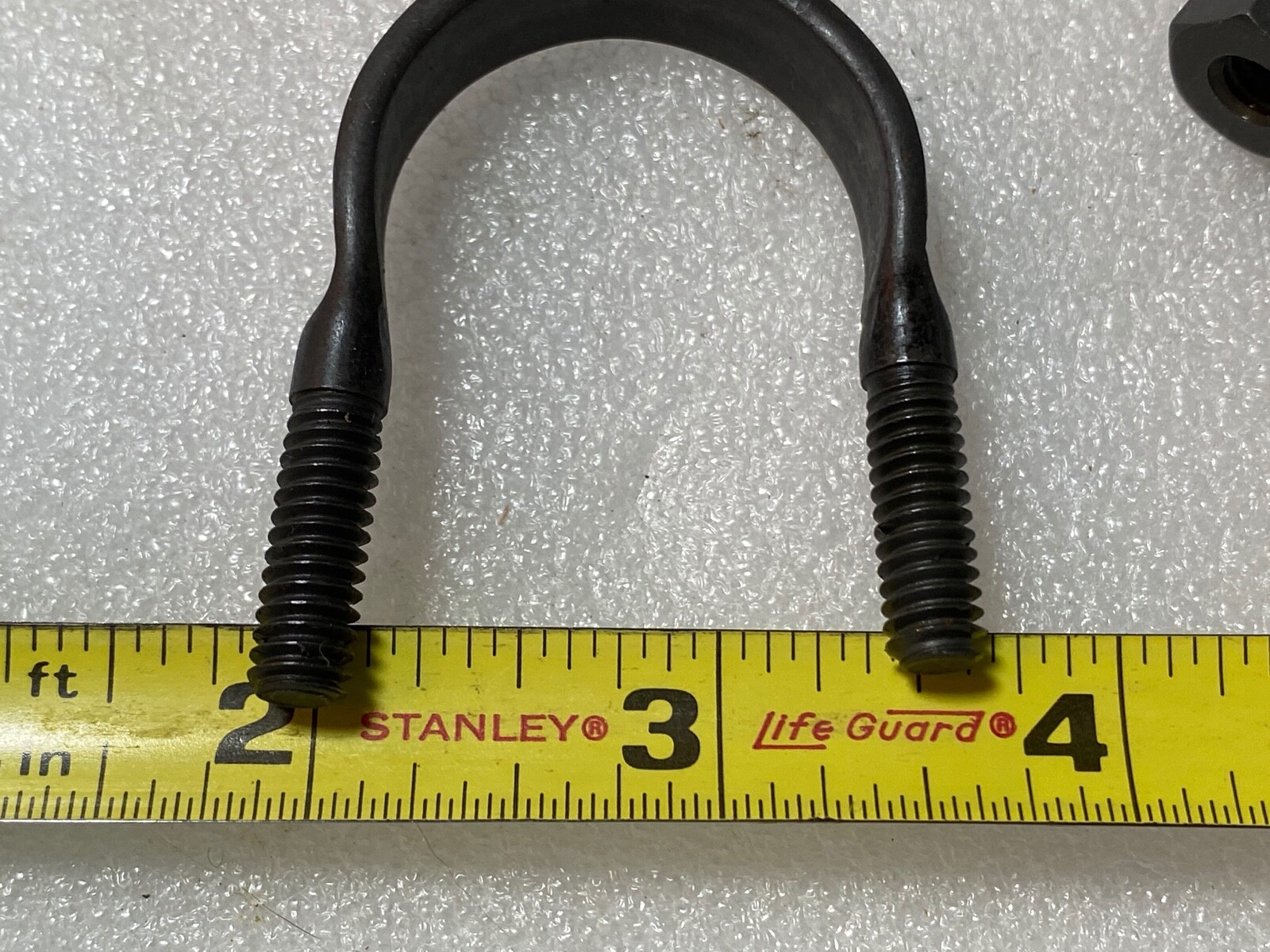

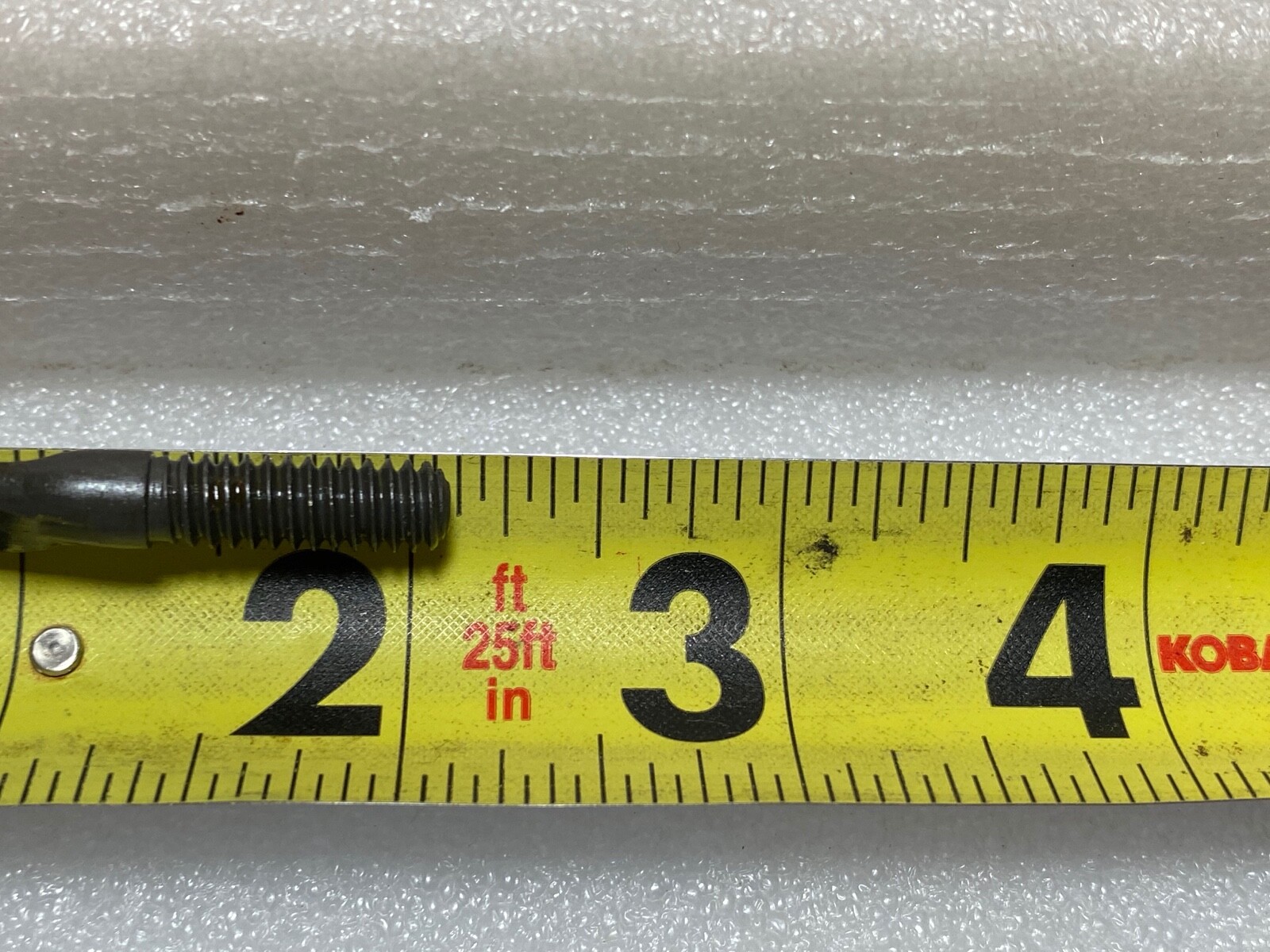

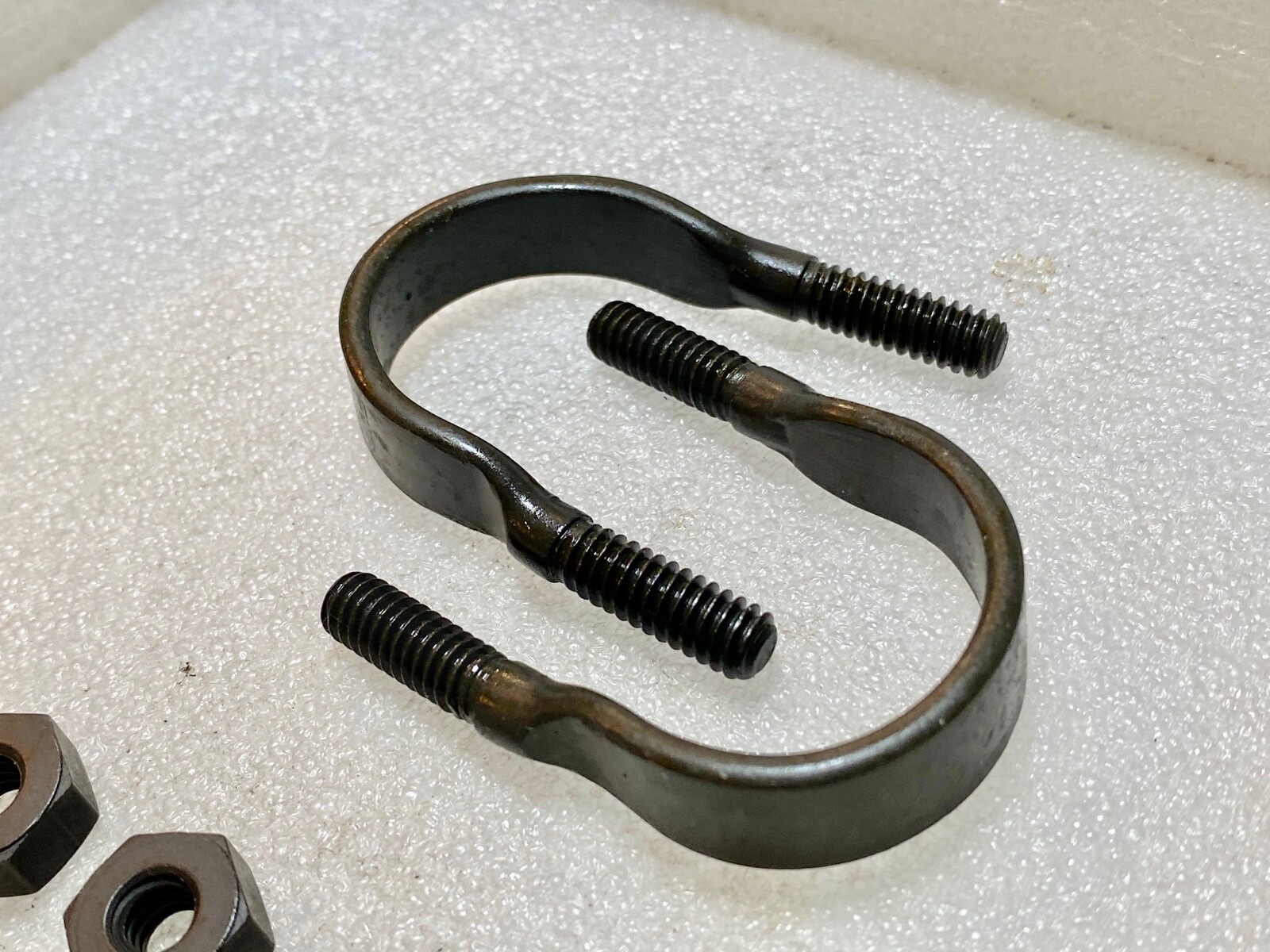

You are purchasing one set of USA made reproduction coil U-bolts and 1/2" special hex nuts for all VL from 1930-1936 and 45" solo and Servicar twin models from 1930-1947 using the early style twin cylinder spark coil used on all twin models from 1930-1947. The bolts are formed, machined, and parkerized as original in small batches. I honestly can't tell the difference between OEM and this. It's that nice. We also sell the cast u-bolt brackets, screw plates, small screws, and other components on other listings in addition to complete mounting kits for flathead and OHV models.
I do note there is a 1723-30 spark coil clamp bolt listed in the parts catalog for 1930 to first 1933 74" twins but 1723-29 is also listed for 1930-1936 74" & 80" twins. We've got the 1723-30 u-bolts on another listing if that's what you think you need for your early VL.
We do carry the big twin 1723-36 U-bolts for 1936-47 Knucklehead and UL in addition to spacers, sheet metal coil mount plates, cast iron plates, etc. on other listings.

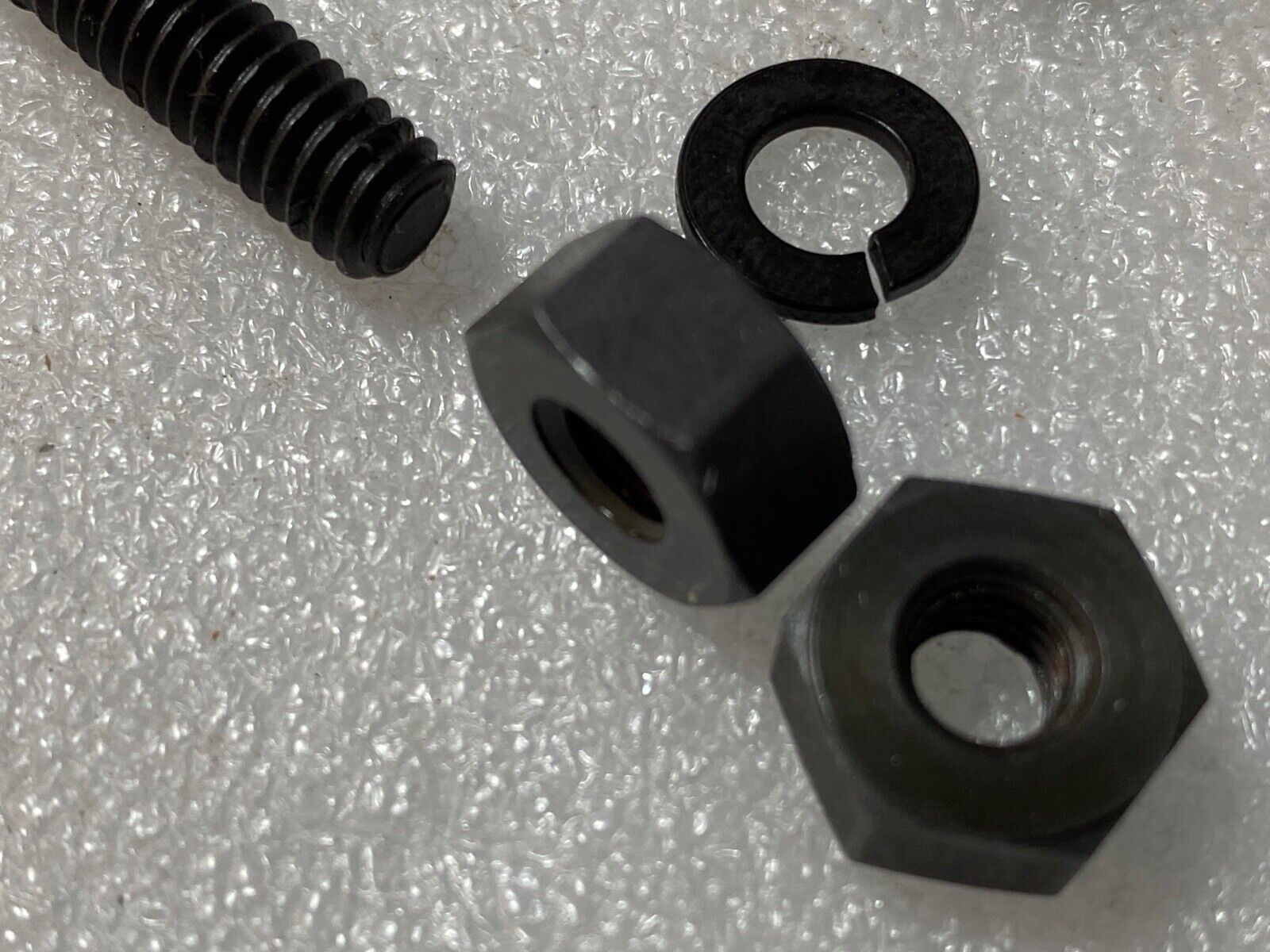

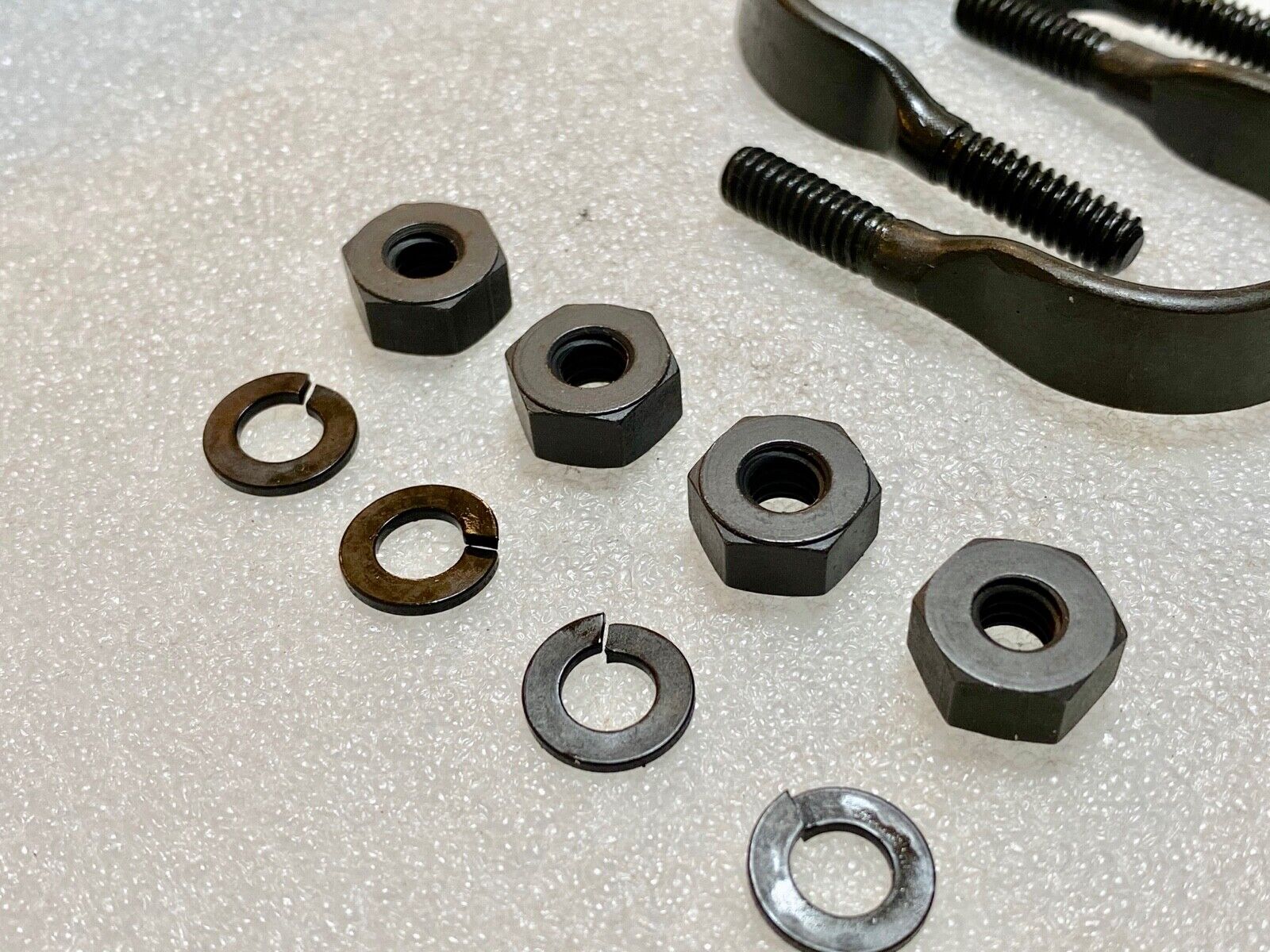

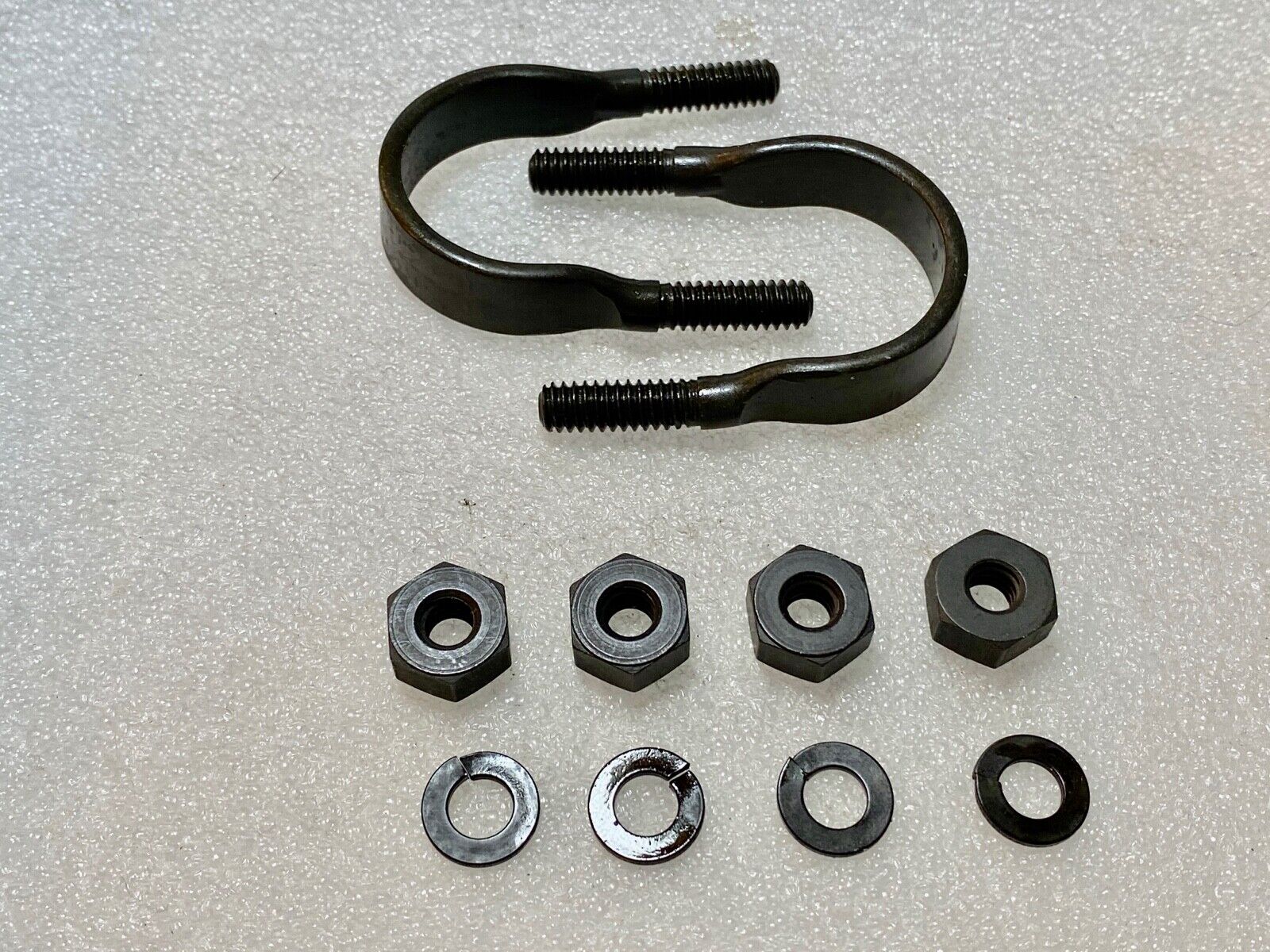

You get the U-bolts, four #0107 special 1/4"-20 x 1/4 x 1/2" hex, and four split lock washers.
We have a huge stock of parts for 1915-1984 Harley-Davidson motorcycles including sheet metal, restoration-correct nickel, parkerized, cadmium, and zinc hardware, metal fuel and oil lines, sheet metal, seats, saddlebags, lighting, accessories, wiring kits, etc. If you don't see what you need here or cimarroncycleworks, just email and ask.
Located at and ships from Cimarron Cycle Works, LLC in beautiful Cimarron, New Mexico, USA.
Used on:
- 1930-1936 74" & 80" V, VL, VH, VLH, VLD, VLDD, VLE, etc. big twin flat head or side valve
- 1930-1936 45" D, DL, DLD, R, RL, RLE, RLD etc. flat head or side valve
- 1937-1947 45" W, WL, WLD flat head or side valve
- 1932-1947 45" G Servicar
We are happy to combine shipping with other items, just put them in your cart and check out all at once.
We work with a small group of dedicated craftsmen around the world to bring you premium restoration parts for your 1915-1984 Harley-Davidson motorcycle.
