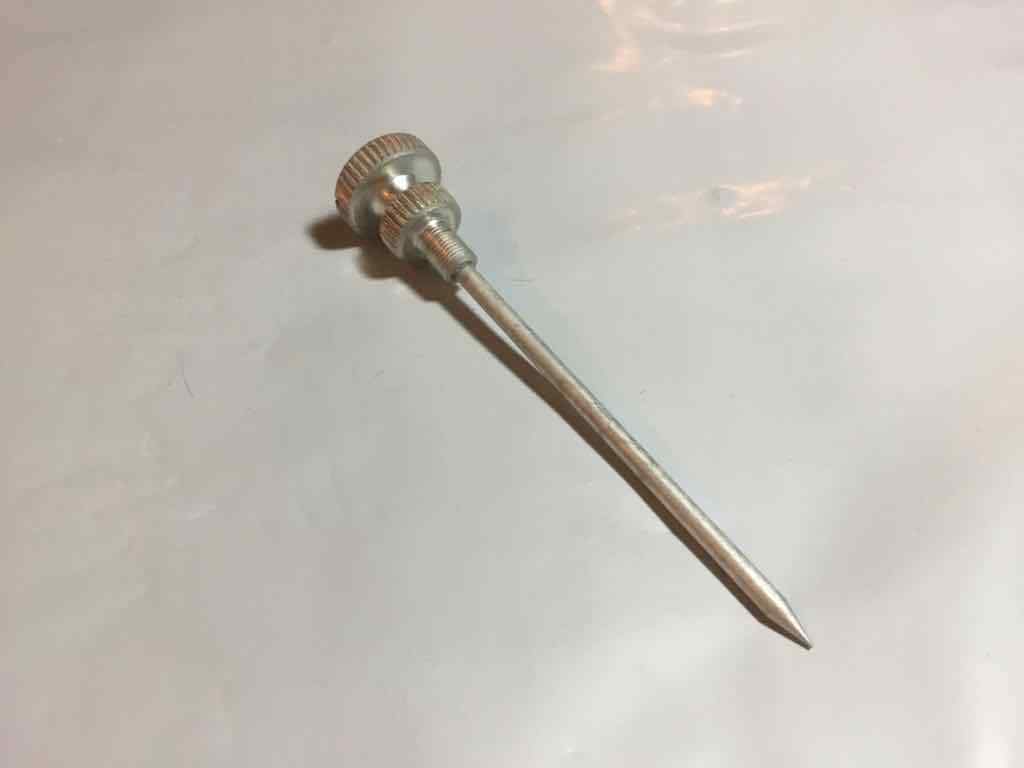

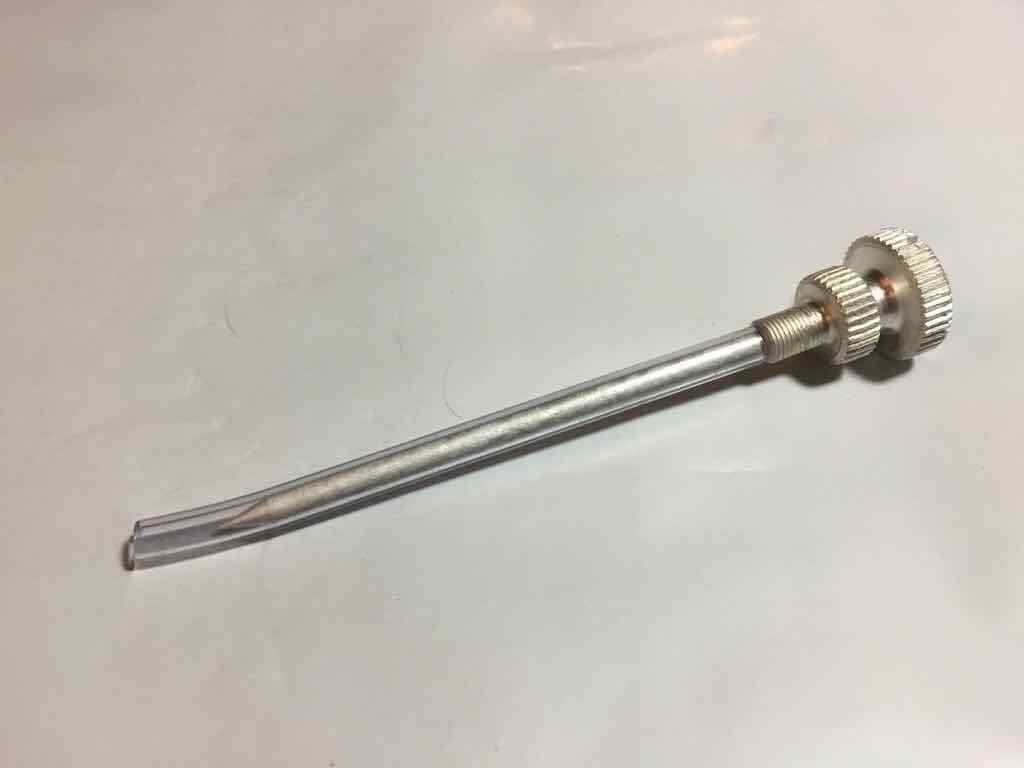

You are purchasing one European-made high speed needle valve for 1 1/4" bore Linkert and Schebler side valve and IOE carburetors used from 1927 to 1952. This has the "Type II" knob on it which was wider at the top and the knurls that engage the retainer ball are smaller diameter which makes it "detail correct" on Linkerts from 1933 to about 1947. These would have been used on JD, DL, RL, VL, UL, and WL, models, as well as Indian, Henderson, or any other brand using 1 1/4" bore Schebler Deluxe or Linkert M-Series carburetors.
This will work on an M-5 carb for your Knucklehead, but the correct knob for that needle is more elongated for the rider to reach it under their tank.
This does not fit 1" Linkert carburetors as used on commercial units, four cylinders, or Servicars, nor 1 1/2" bore Linkert carbs.
We also sell fuel strainers, fuel lines, needles, main nozzles, low and high speed needles, standard and oversize throttle and choke discs, and other repair parts. Keep an eye on our listings for OEM Linkert carburetor bodies.
I have built literally hundreds of Linkert M-Series carbs over the years and these are an excellent replacement needle.
Fits the following, "Detail Correct" through 1947:
- 1927-1929 J, JD, JDH
- 1930-1936 V, VL, VC, VD, VLD, VE, VLD, VH, VLH except commercial units equipped with 1" bore carburetors
- 1929-1936 D, DL, DLD, R, RLD, RLE, 45" non-commercial solo models with 1 1/4" carburetors
- 1937-1948 U, UL, ULH, UH, US, USA, UA, ULA
- 1937-1952 W, WL, WLD, WLA, WLC 45" solo
Some of the following Linkert carburetor models this would have been used on, there are many more applications and the data can be found on line:
- 1 1/4": M-2, M-5, 21, 31, 41, 41L, 51, 51L, 52, 54, 54B, 55, 58, 64, 65, 84, 88, 90, 97
Please be sure to check our store for more VL era parts such as oil lines, exhaust clamps, and a full selection of plain head, machine cut bolts that are exacting duplicates of the original H-D hardware. We have fuel tank mount kits, exhaust kits, etc. Please drop us an email if you don’t see what you are looking for in our eBay store. We have literally hundreds of parts for 1915-1984 H-D we have not had time to list on eBay as of yet.
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.
