Harley 11366-38 Guide S-H2 Spot Lamps Knucklehead UL WL 1938-48 W/ Focus Screws

  • Product Code: 352201569931
  • Availability: In Stock
  • $199.95

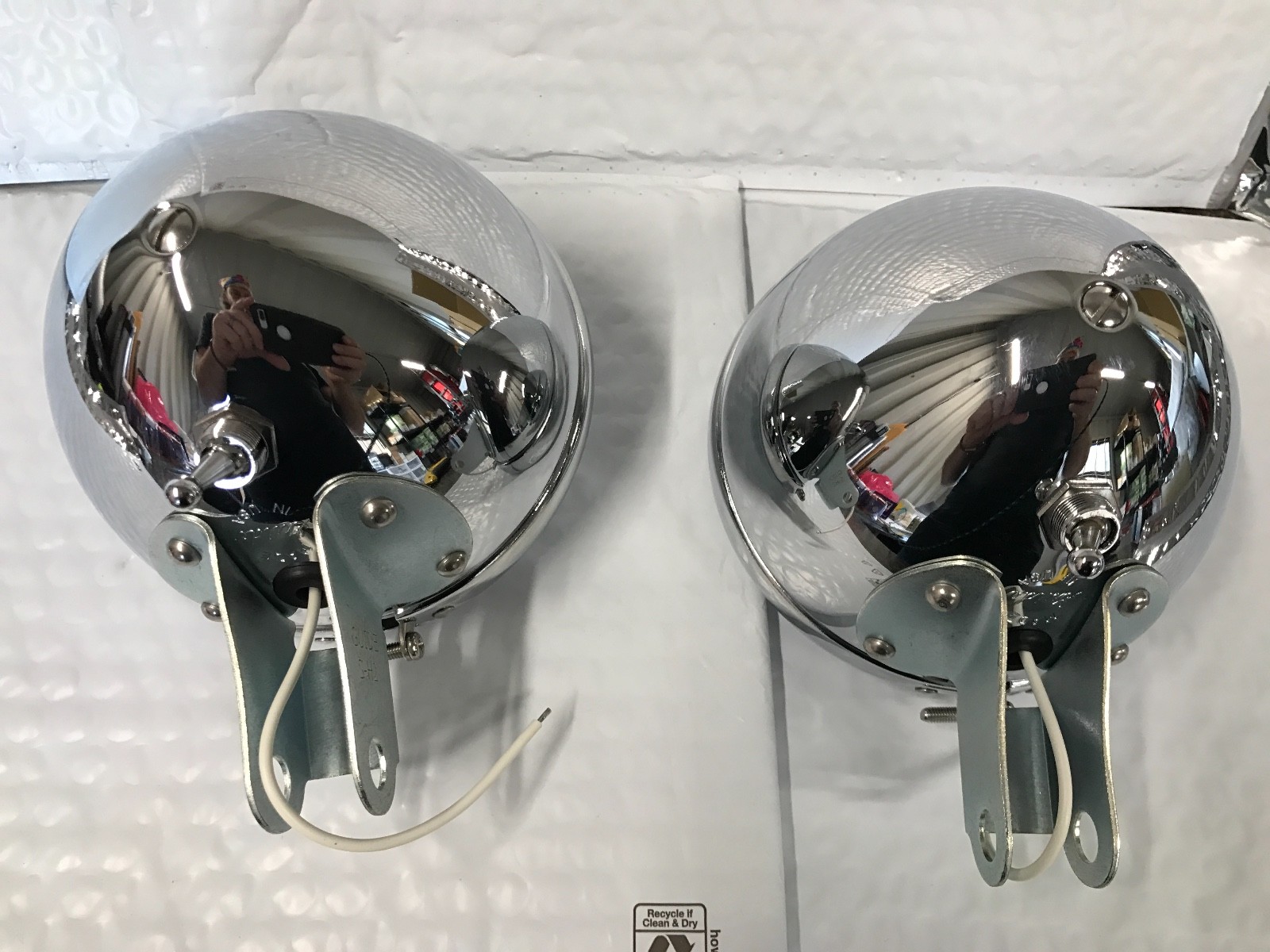

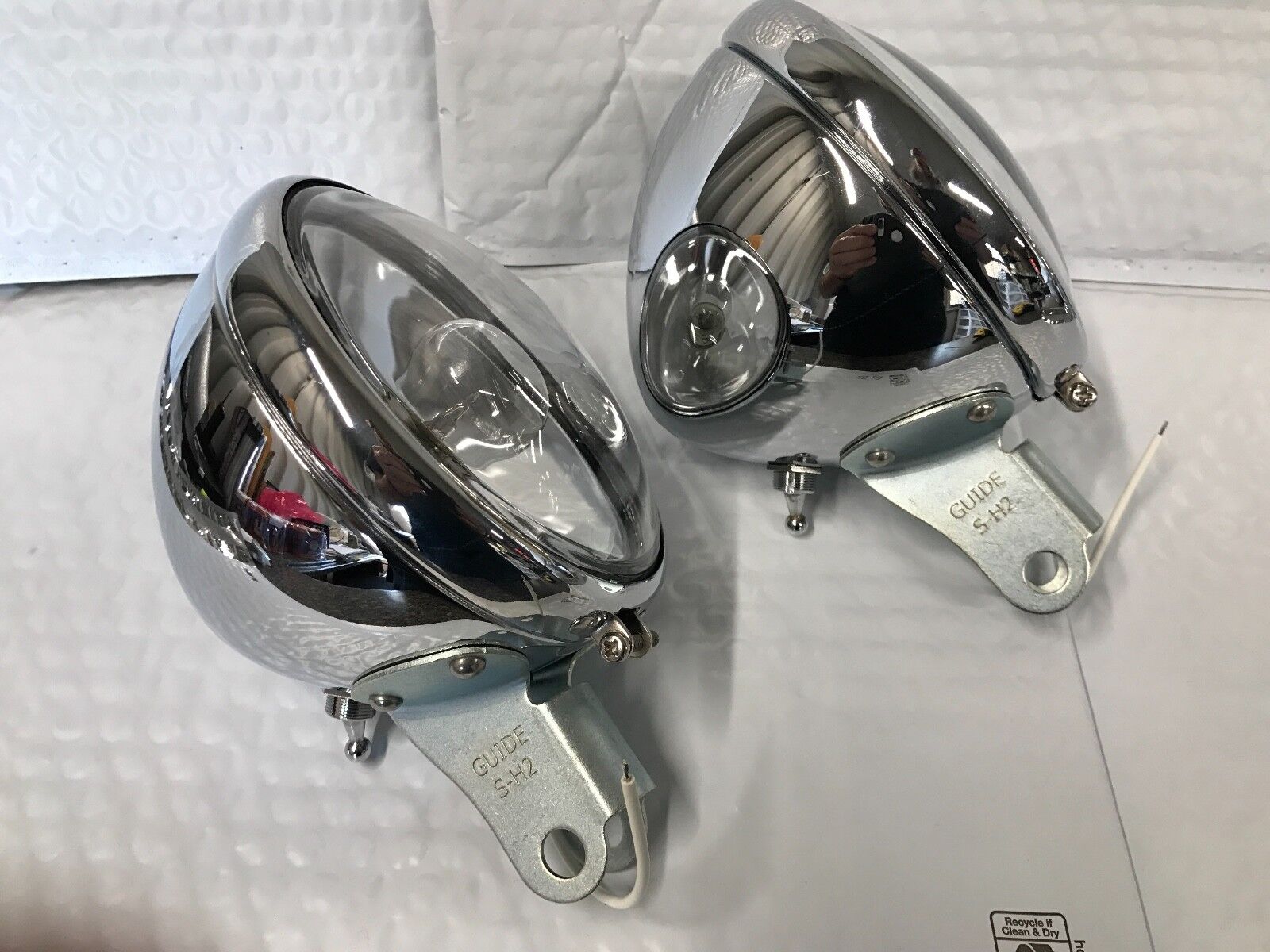

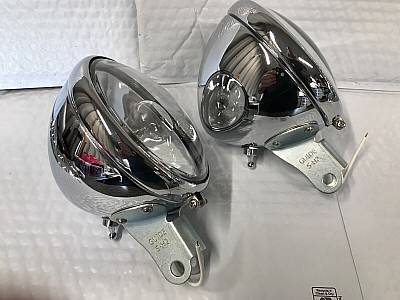

You are purchasing one pair of very nice reproduction Guide S-H2 spot lamps as used on Harley-Davidson springer models from 1938-1957.  These will fit 1936 & 1937 models, but this style of spot light was not introduced until 1938.  The detail on these is really amazing including the accurate shape of the toggle switches, buckets, bezels, lenses, and stanchions.  Far as I know, all the parts will interchange with original Guide spot lamps.  The only readily apparent detail I see which differs from original is the door or bezel screws are Phillips instead of straight slot screws. We do have the correct straight slot screws and can include those, just leave a note upon checkout.

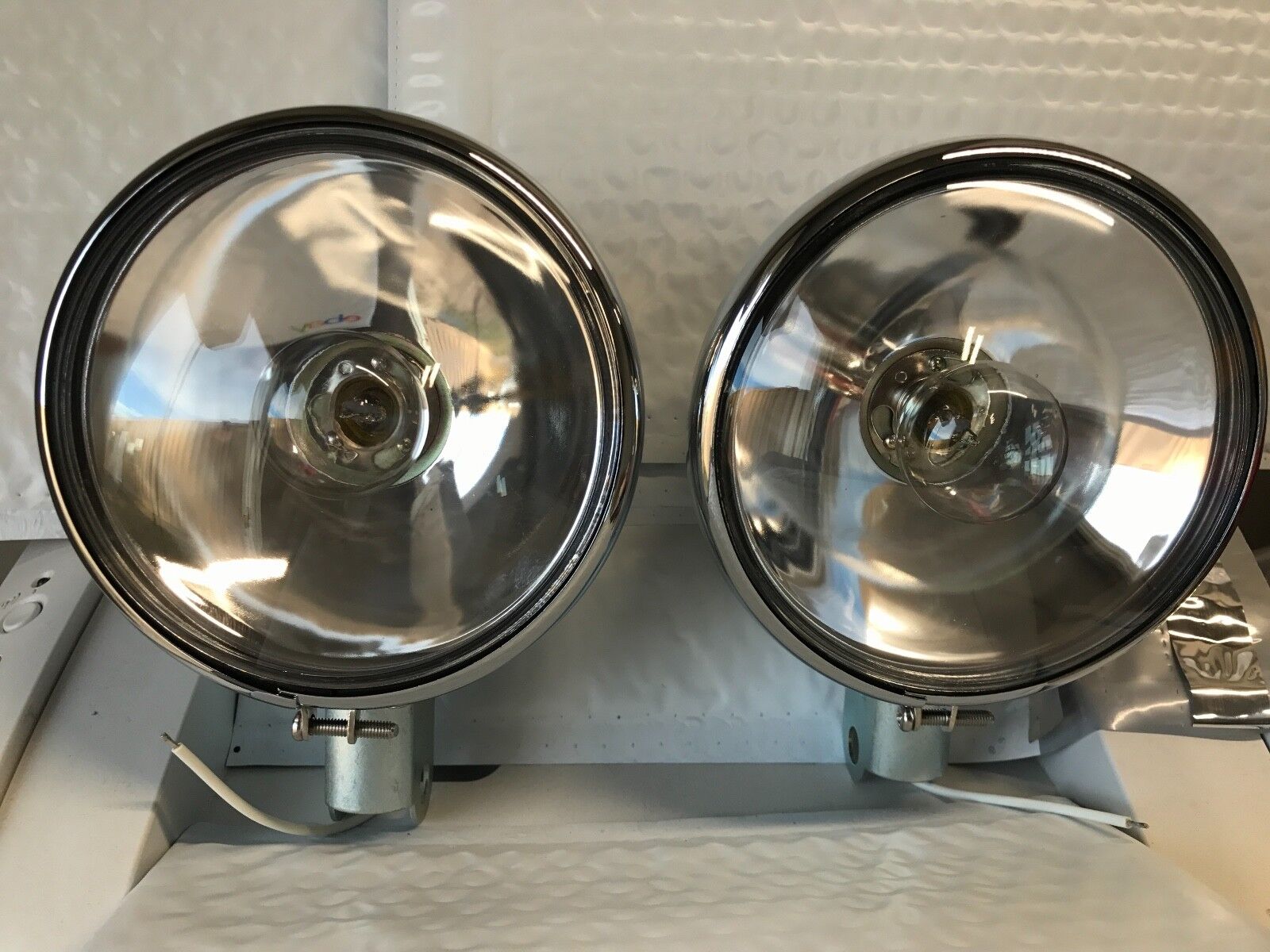

Bulbs are single filament 6V and just as original are NOT sealed beams.  You can purchase 12V bulbs for these in our store, if you cannot find them, just email us.

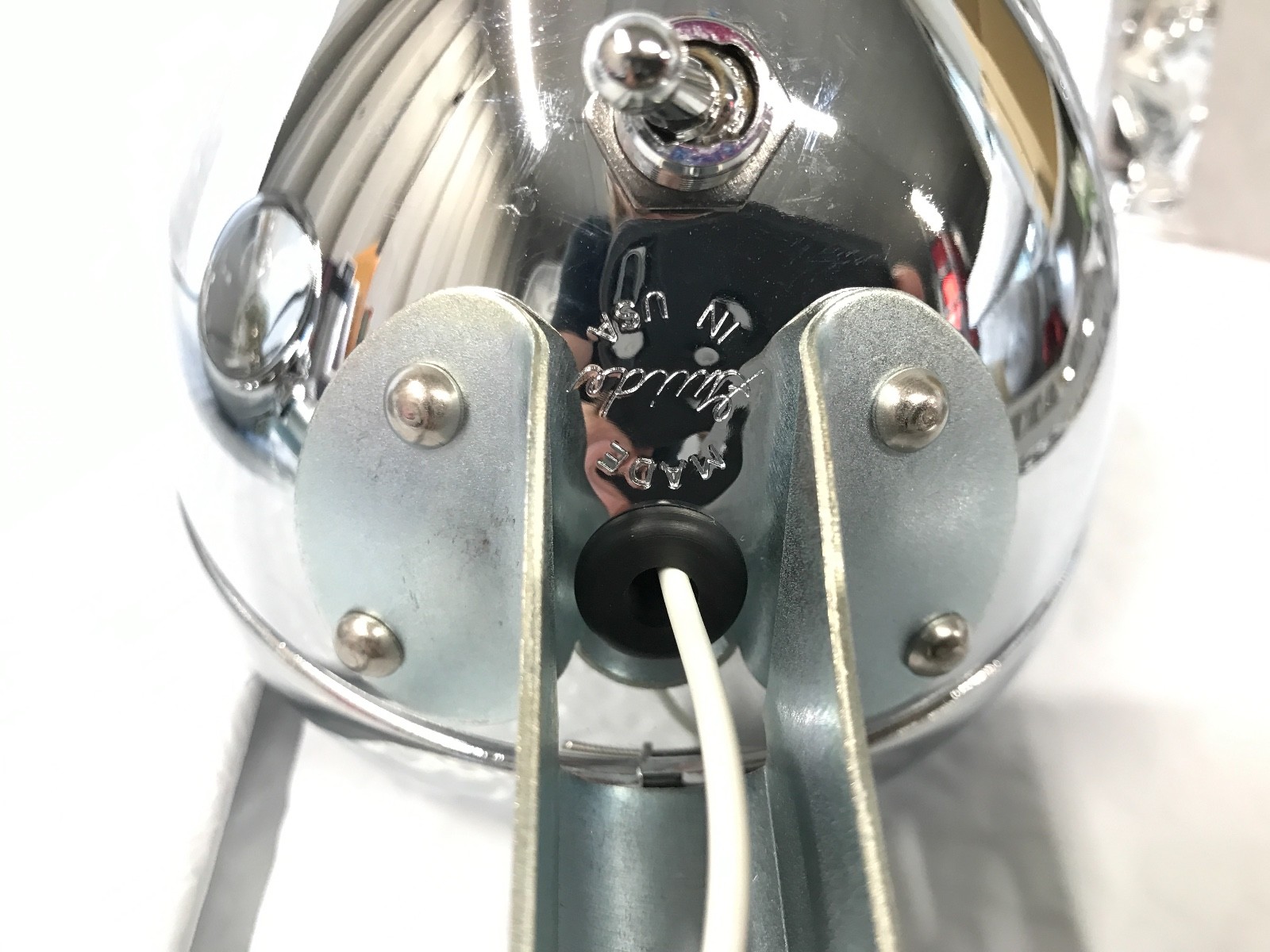

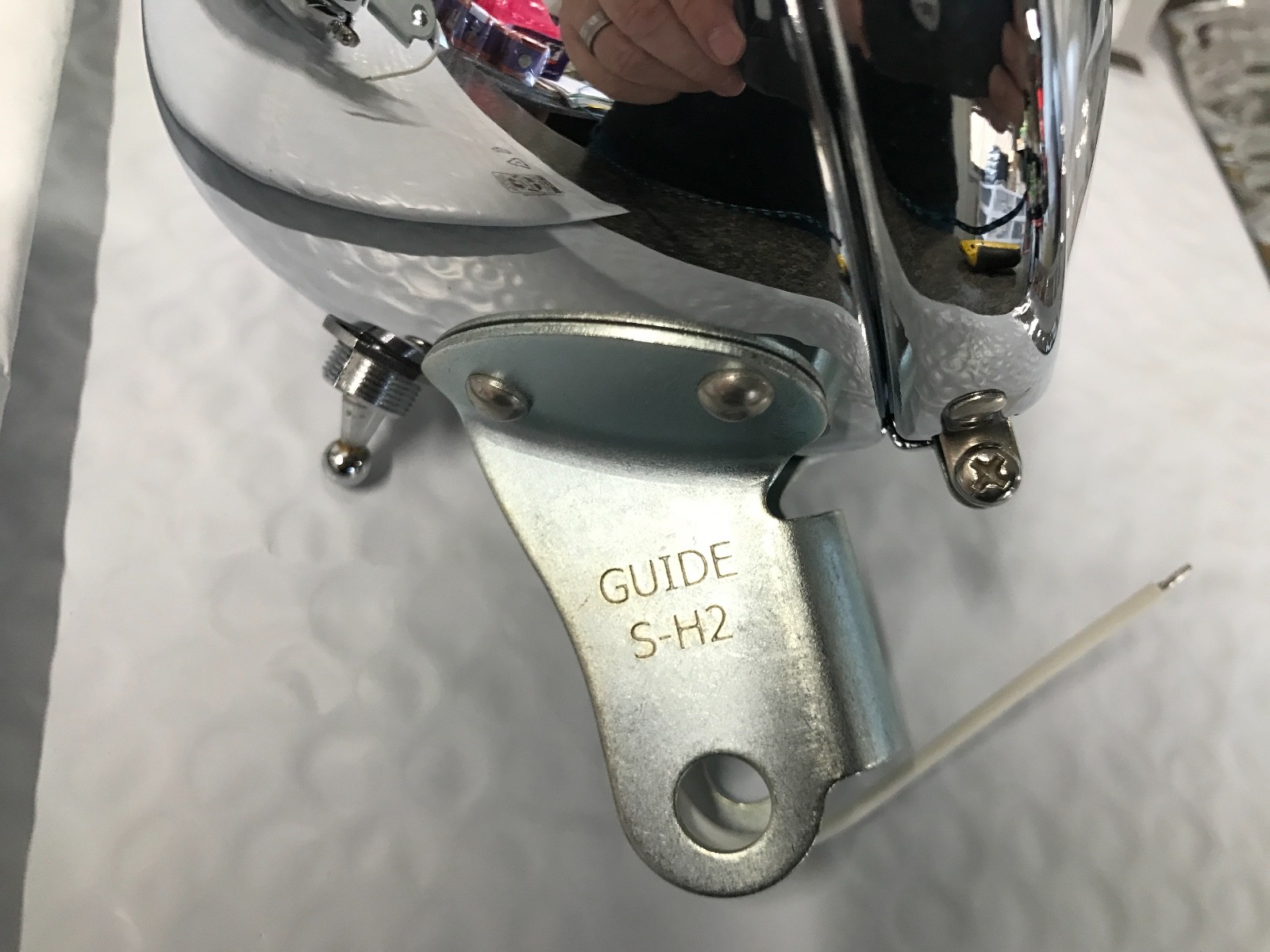

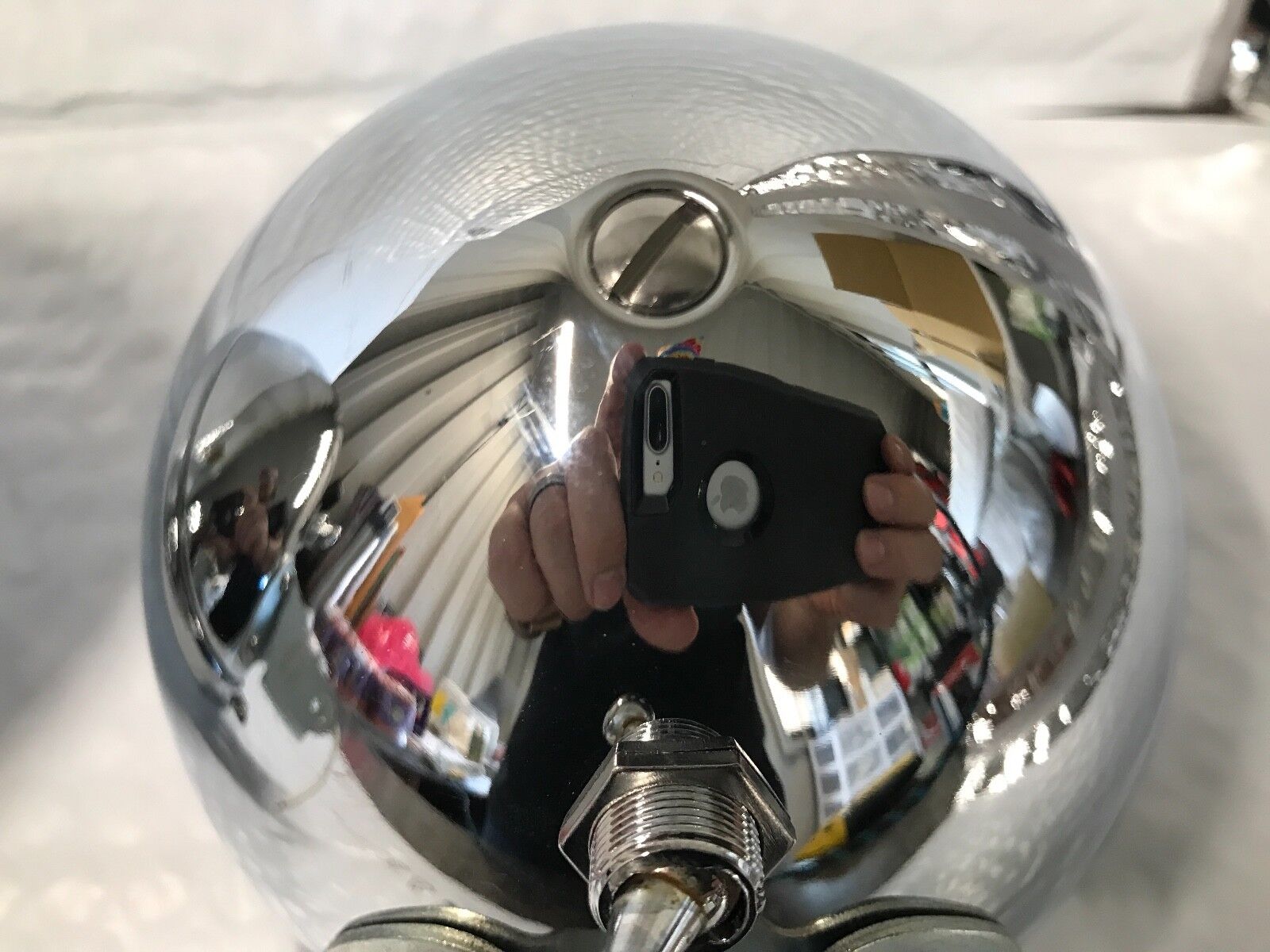

These have the focus screws in the back as original and have "GUIDE S-H2" stamped on the stanchions and "Guide Made In USA" stamped underneath the shell.  This is by far the best reproduction we have seen of these.  Do note, these are pre-focused bulbs and the focus screw on the back is for detail only, not to adjust the beam of the lamp.

We also sell these in kits with mounting hardware and mounting cross-bars.  We can also customize with early or late mounting hardware and we have different mounting cross bars.

There may be minor details an AMCA judge could pick out, but I am not certain what those would be.

These can also be used with 1949-1961 Hydra-Glide front ends but the correct spot lamps had shorter stanchions for those models.

Used on the following
  • 1936-1947 EL, FL, ELA, ELC 61" & 74" OHV Knucklehead
  • 1937-1948 U, UL, UH, ULH, UA, ULA, USA, etc. 74" & 80" big twin flathead
  • 1937-1952 W, WL, WLA, WLC, WLD, WRTT 45" solo
  • 1937-1957 G Servicar
  • 1948-1949 EL & FL 61" & 74" OHV Panhead Hydra-Glide. (1949 spring fork-equipped panheads for side-car and package truck duty)
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

To take advantage of our shipping promotions and combined shipping discounts, please add all your items to your eBay shopping cart then go to check out.  Your shipping will be automatically calculated and free shipping promotions will be automatically applied.  If you remember something else you need, no worries, just buy it, we will combine shipping and send appropriate shipping refunds to your PayPal account.

A note on our parts:

We work with a small group of select vendors and craftsmen to provide you with the most accurate appearing and fitting parts for your 1915-1984 Harley-Davidson.  We try to stock hard-to-find hardware, oil & fuel lines, electrical, exhaust, suspension, brake, engine, & transmission parts.  We are constantly adding new listings to eBay but we have hundreds of items we've not had time to list yet.  If there is something you need which you do not see, just let us know.
